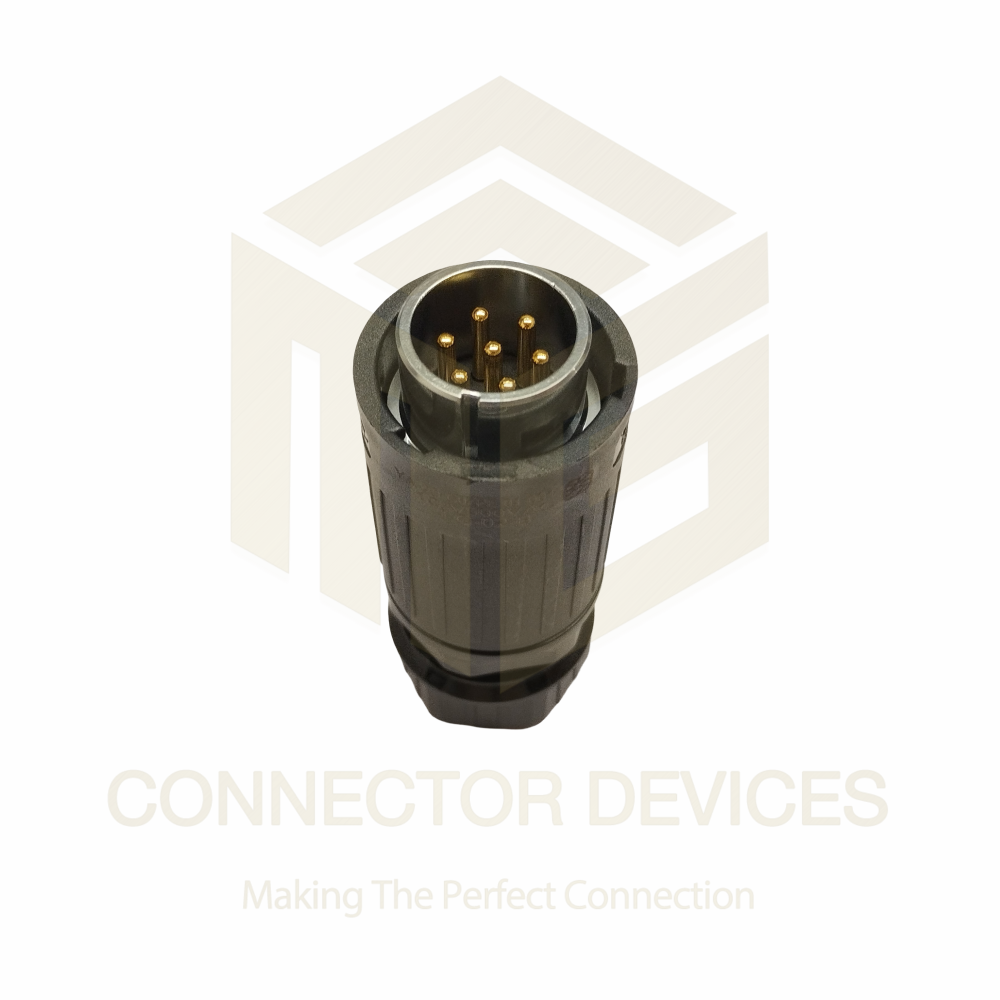

YA20 500V 20A 7Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

495 INR/Piece

Get a Price/Quote

Product Details:

Interface 7-pin solder terminal
IP Rating IP67
Output N/A (Male connector only)
Components Plastic+Metal shell, copper alloy contacts
Power Supply AC/DC compatible
Features Waterproof, dustproof, corrosion resistant, robust shell
Usage Outdoor and indoor electrical wiring
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YA20 500V 20A 7Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 495 INR/Piece

Insulation Resistance >5000M (500V DC)
Flame Retardant Grade UL94V-0
Contact Resistance 2.5m
Locking Mechanism Threaded coupling
Withstanding Voltage 2500V AC/min
Cable Range 6mm ~ 12mm OD
Connector Type YA20 male plug
Mounting Type Cable plug
Contact Material Copper alloy with nickel plating
Termination Solder terminal
Number of Pins 7 (Male type)
Shell Material Industrial-grade plastic and metal
Degree of Protection IP67 (dust tight, protected against immersion)

YA20 500V 20A 7Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Size YA20 standard
Power Supply AC/DC compatible
Components Plastic+Metal shell, copper alloy contacts
Capacity 20A
Application Power distribution, machinery, automation equipment
Output N/A (Male connector only)
IP Rating IP67
Interface 7-pin solder terminal
Rated Voltage 500V
Dimension (L*W*H) Approx. 95mm (L) x 35mm (Diameter)
Current Rating 20A
Supply Voltage 500V
Weight Approx. 120g
Input 7-pin male plug
Power Source Wired (via cable connection)
Operating Temperature -40C to +85C
Features Waterproof, dustproof, corrosion resistant, robust shell
Function Power connection for industrial equipment
Usage Outdoor and indoor electrical wiring
Color Black and silver
Frequency 50/60Hz
Product Type Waterproof power connector

Insulation Resistance >5000M (500V DC)
Flame Retardant Grade UL94V-0
Contact Resistance 2.5m
Locking Mechanism Threaded coupling
Withstanding Voltage 2500V AC/min
Cable Range 6mm ~ 12mm OD
Connector Type YA20 male plug
Mounting Type Cable plug
Contact Material Copper alloy with nickel plating
Termination Solder terminal
Number of Pins 7 (Male type)
Shell Material Industrial-grade plastic and metal
Degree of Protection IP67 (dust tight, protected against immersion)

YA20 500V 20A 7Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

The YA20 500V 20A 7Pin Male Plug sets a top-tier standard for industrial power connections, merging an ace combination of durability and performance. With an impressive IP67 waterproof rating, this connector is highly recommended for both outdoor and indoor electrical wiring. Its robust plastic and metal shell is flame-retardant (UL94V-0) and corrosion-resistant, ensuring maximum safety and longevity. Featuring a noteworthy copper alloy with nickel-plated contacts, reliable threaded locking, and 7-pin solder terminals, this connector suits power distribution, machinery, and automation equipment. Pick yours now and enjoy special discount offers!

YA20 500V 20A 7Pin Male Plug: Versatile Advantage & Application

This ace YA20 male plug boasts advantages such as high insulation resistance (>5000M) and withstanding voltage (2500V AC/min), making it perfect for general and specific industrial uses. It excels on surfaces exposed to harsh environments, offering water, dust, and corrosion protection. It's optimized for power connection in machinery, automation, and power distribution-making it a top choice for both manufacturers and installers in varying settings.

Global Export Markets, Packaging & Sampling Details

Our YA20 7Pin Male Plug is a go-to for international clients requiring reliable goods transport. Recognized in export markets across the globe, we ensure the outlay is protected with secure and robust packaging for every shipment. For added convenience, product samples are readily available, facilitating easy inspection and testing prior to bulk transportation. Choose a package that supports the safe travel and timely delivery of your valuable connectors.

FAQ's of YA20 500V 20A 7Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How does the threaded coupling locking mechanism benefit the YA20 plug's usage?

A: The threaded coupling offers secure and reliable locking, minimizing accidental disconnections and ensuring steady, uninterrupted power supply even in vibration-prone environments.

Q: What makes the YA20 7Pin Male Plug suitable for outdoor applications?

A: Its IP67 waterproof and dustproof rating, alongside a flame-retardant plastic and metal shell, ensures the plug withstands harsh weather conditions and tough industrial environments.

Q: Where can this connector be primarily applied?

A: It is ideal for power distribution, automation equipment, machinery, and outdoor or indoor electrical wiring in both commercial and industrial settings.

Q: What is the process for installing the YA20 plug?

A: Installation involves wiring to the 7-pin solder terminals, securing the cable within the 6mm-12mm range, and tightening the connector using its threaded locking system.

Q: When is it recommended to use this connector over standard plugs?

A: It's highly recommended for scenarios where waterproof, dustproof, and robust connections are essential-such as in demanding outdoor environments or heavy machinery setups.
