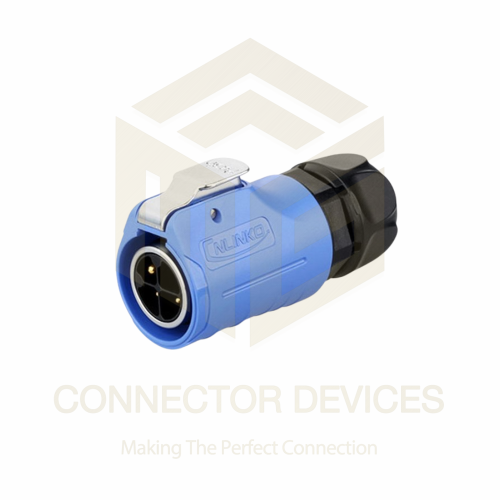

LP20 20A 4Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

Name: LP20 20A 4Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 507.0 INR
Availability: InStock

507.0 INR/Piece

Get a Price/Quote

Product Details:

Usage Outdoor/industrial power connection
IP Rating IP67
Operating Temperature -40C to +80C
Power Supply Electrical
Output To compatible 4-pin female socket
Input Up to 20A 4-pin male connection
Features Waterproof, dustproof, vibration resistant, durable, outdoor/industrial grade
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP20 20A 4Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 507.0 INR/Piece

LP20 20A 4Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Current Rating 20A Max
Function Power transmission and waterproof electrical connection
Capacity 20A max current
Components Plastic+Metal Shell, Solder Terminals, 4-pin male connection
Output To compatible 4-pin female socket
Color Black + Silver
Application LED lighting, automation equipment, outdoor displays, stage equipment, industrial power distribution
Power Source Electrical wiring
Features Waterproof, dustproof, vibration resistant, durable, outdoor/industrial grade
Interface 4-pin solder terminal
Dimension (L*W*H) Length: 71mm; Diameter: 28mm (shell)
Power Supply Electrical
Supply Voltage 500V AC Max
Weight Approximately 55g
Frequency 50/60Hz
Rated Voltage 500V AC
Product Type Power Connector Plug
Size Standard LP20 plug size
Usage Outdoor/industrial power connection
Input Up to 20A 4-pin male connection
IP Rating IP67
Operating Temperature -40C to +80C

Mating Cycle >500 times
Cable Diameter Range 6-12mm
Insulation Resistance 5000M at 500V DC
Locking Mechanism Threaded coupling
Contact Resistance 2.5m
Number of Pins 4 pin
Connector Type Male plug
Flame Retardance UL94-V0
Mounting Type Cable mount
Shell Material High-strength plastic + metal alloy
Contact Material Copper alloy, gold plated

LP20 20A 4Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Contact resistance:< 1.0mOhm
Withstanding voltage:2500V
Mating cycle:> 1700 Times
Contact dimension:Phi 2.7x3
Temperature and humidity:-40+80C; 40C, 85%RH
Screw torque:42-53 (N.m)

Superior Weatherproof Power Connection

Designed to withstand harsh environments, the LP20 20A 4Pin Male Plug features IP67-level waterproofing and dustproofing. Its high-strength plastic and metal alloy shell ensures resilience in demanding outdoor or industrial scenarios, safeguarding connections from elements and prolonging service life.

Enhanced Safety and Durability

With flame retardance-rated at UL94-V0, threaded coupling for reliable locking, and robust insulation resistance, this plug guarantees electrical safety under challenging conditions. Vibration-resistant construction and gold-plated contacts offer consistent performance across more than 500 mating cycles.

Versatile Industrial Usage

Compatible with a variety of applications including LED lighting, automation systems, stage equipment, and power distribution, the LP20 plug accommodates cable diameters from 6 to 12 mm and supports 500V AC at up to 20A, fulfilling both power and waterproof requirements for professionals across industries.

FAQ's of LP20 20A 4Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How do I install the LP20 20A 4Pin Male Plug for a waterproof power connection?

A: To install, solder wires to the 4-pin terminals, secure the cable (6-12mm diameter) within the connector body, then lock using the threaded coupling for a tight, waterproof seal. The IP67 rating ensures protection against water and dust after proper assembly.

Q: What applications are suitable for this male power connector?

A: This connector is ideal for outdoor and industrial settings, such as LED lighting systems, automation equipment, stage setups, outdoor displays, and industrial power distribution, where reliable and weatherproof power transmission is essential.

Q: When should I use the LP20 plug instead of other connectors?

A: Use the LP20 plug when you require a durable, waterproof (IP67), and vibration-resistant connector capable of handling up to 20A at 500V AC, especially in environments exposed to moisture, dust, or physical stress.

Q: Where can the LP20 4-pin male plug be safely installed?

A: It can be safely installed both indoors and outdoors, on equipment or cables requiring reliable high-power connections, thanks to its robust, flame-retardant, and waterproof construction suitable for harsh industrial or open environments.

Q: What is the process for ensuring a secure electrical connection with this connector?

A: Start by stripping the cable, soldering wires to the gold-plated copper alloy pins, assembling the cable clamp, and tightening the threaded Coupling nut for a vibration-resistant and leak-proof connection. Double-check the insulation and grounding before use.

Q: What are the key benefits of using the LP20 power connector in my project?

A: Key benefits include reliable high-current capacity (20A), excellent waterproof and dustproof protection (IP67), easy and secure threaded locking, high mechanical strength, and resistance to flames, vibration, and corrosion, making it fit for tough, long-term outdoor and industrial assignments.
