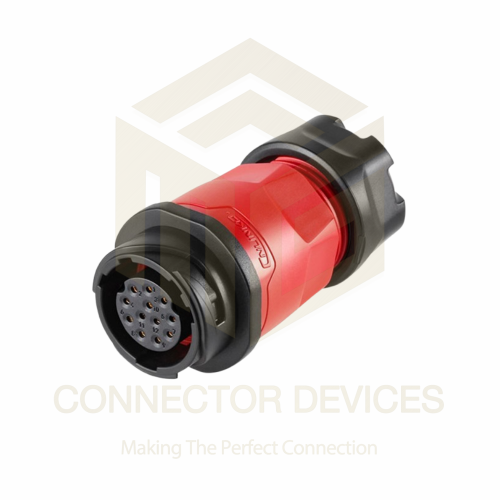

YM20 5A 12Pin Female Plug IP68 Waterproof Power Connector Inline Plastic Shell Solder Terminal

Name: YM20 5A 12Pin Female Plug IP68 Waterproof Power Connector Inline Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 460.0 INR
Availability: InStock

460.0 INR/Piece

Get a Price/Quote

Product Details:

Output Cable soldered to male connector or device
Input Cable soldered to female connector
Power Source External electrical connection
IP Rating IP68
Operating Temperature -40C to +85C
Interface Solder Terminal, 12 Pin Female Interface
Features Waterproof, Dustproof, Corrosion Resistant, Screw Locking, Easy Assembly
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 5A 12Pin Female Plug IP68 Waterproof Power Connector Inline Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 460.0 INR/Piece

YM20 5A 12Pin Female Plug IP68 Waterproof Power Connector Inline Plastic Shell Solder Terminal Product Specifications

Product Type Female Inline Power Connector
Rated Voltage 500V AC/DC
Power Source External electrical connection
Current Rating 5A max per pin
Frequency 50/60Hz applicable
Output Cable soldered to male connector or device
Supply Voltage Up to 500V
Input Cable soldered to female connector
Features Waterproof, Dustproof, Corrosion Resistant, Screw Locking, Easy Assembly
Weight Approx. 38g
Components Plastic Shell, 12 Pin Solder Terminal, Waterproof Seal, Lock Nut
Usage Multi-Pin Waterproof Electrical Connections
Thickness Shell thickness approx. 2.5mm
Capacity 12 Pin contacts
Power Supply External
IP Rating IP68
Dimension (L*W*H) Approx. 78mm x 28mm x 28mm (assembled)
Operating Temperature -40C to +85C
Application Industrial, Outdoor Lighting, Automation, Machinery, LED Power, Solar Power
Size YM20 Series standard
Color Black
Interface Solder Terminal, 12 Pin Female Interface
Function Electrical power and signal connectivity

Contact Termination Solder
Cable Outer Diameter Range 5.5mm - 9mm
Shell Material High-strength PA66 plastic
Protection Class IP68 waterproof and dustproof
Insulation Resistance >1000 M at 500V DC
Sealing Method Rubber O-ring and compression nut
Locking Mechanism Threaded screw coupling
Contact Resistance 5m
Flame Retardant Rating UL94 V-0
Mechanical Life Over 500 mating cycles
Mounting Type Inline cable mount
Number of Contacts 12 positions
Contact Material Copper alloy with gold plating

YM20 5A 12Pin Female Plug IP68 Waterproof Power Connector Inline Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:250V
Withstanding voltage:2500V
Contact resistance:< 1mohm
Insertion and extraction force:4.0N Max
Screw torque:42-53 (N.m)
Mating cycle:1700 Times
Temperature and humidity:-4080C; 40C, 85%RH
Contact dimension:Phi 2.7*2

Advanced Waterproof and Dustproof Design

The YM20 series connector features an IP68-rated enclosure, utilizing a robust PA66 plastic shell and a rubber O-ring with a compression nut for exceptional moisture and dust protection. This ensures secure and reliable connections in harsh environments where water ingress and contamination could otherwise cause connectivity issues or equipment failure.

Durable Construction and Long Lifespan

Built with precision gold-plated copper alloy contacts, this connector offers low contact resistance and a mechanical life of over 500 mating cycles. Its flame-retardant, corrosion-resistant shell further contributes to the long-term durability required in industrial, outdoor, and high-demand applications, providing consistent electrical performance over time.

Easy Installation and Secure Locking

The inline cable mount design and solder terminals simplify the assembly process, accommodating cable outer diameters from 5.5mm to 9mm. The threaded screw locking mechanism ensures a vibration-resistant connection that is easy to engage and disengage, making this connector user-friendly for installers in various industries.

FAQ's of YM20 5A 12Pin Female Plug IP68 Waterproof Power Connector Inline Plastic Shell Solder Terminal:

Q: How does the YM20 5A 12Pin Female Plug ensure waterproof and dustproof performance?

A: The connector achieves IP68-level protection through the use of precision-engineered rubber O-rings, a secure compression nut, and a durable PA66 plastic shell. These elements collectively prevent water and dust from entering, ensuring safe operation in outdoor or industrial environments.

Q: What mounting method is used for this connector, and how is it installed?

A: The YM20 12Pin Female Plug uses an inline cable mount, with cables soldered directly to the solder terminals. Installation involves stripping the cable, soldering wires to the terminals, sealing with the compression nut and O-ring, and securing with the threaded coupling for reliable mechanical strength.

Q: When should I use this connector for my project?

A: Choose the YM20 5A 12Pin connector whenever you need a reliable, high-performance connection in demanding environments such as outdoor lighting, machinery, automation, solar power, or any application requiring robust waterproof multi-pin connections.

Q: Where can the YM20 connector be utilized most effectively?

A: This connector is ideal for use outdoors and in industrial settings, such as in LED lighting installations, automation systems, machinery wiring, and solar power arrays. Its robust design is suited for locations exposed to moisture, dust, or varying temperatures.

Q: What benefits does its flame retardant PA66 shell provide?

A: The high-strength PA66 plastic shell, rated UL94 V-0, offers superior resistance to flames and environmental degradation, enhancing safety and extending the connector's service life, particularly in high-risk or outdoor applications.

Q: How does the connector maintain low electrical resistance and reliable connections over time?

A: Gold-plated copper alloy contacts reduce oxidation and minimize contact resistance (as low as 5m), providing stable electrical conductivity and supporting consistent current flow up to 5A per pin throughout its 500+ mating cycles.
