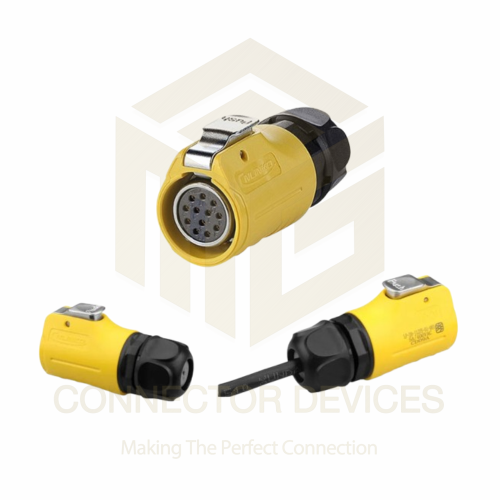

LP20 250V 5A 12Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal
580.0 INR/Piece
Product Details:
- Usage Waterproof power connector for equipment and machinery
- Components Plastic housing, metal shell, solder terminals, O-ring seal
- Power Supply Through cable connection
- Features Waterproof, dustproof, easy installation, rugged design
- Operating Temperature -20C to +85C
- IP Rating IP67
- Power Source External cable/Panel mount
- Click to View more
X
LP20 250V 5A 12Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity
- 100 Piece
- 580.0 INR/Piece
- Bayonet lock
- > 2000 M at 500V DC
- O-ring gasket
- Copper alloy with gold plating
- 12
- 5m
- 6-12mm
- > 500 mating cycles
- Panel mount or cable mount
- UL94-V0
- High-grade plastic with zinc alloy metal ring
LP20 250V 5A 12Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications
- Approx. 60g
- Solder terminal input
- Industrial automation, LED lighting, outdoor equipment, power distribution
- Approx. 65mm x 30mm x 30mm
- External cable/Panel mount
- Circular waterproof connector
- 12-pin female interface
- 250V max
- 12 Pin Female plug with solder contacts
- Through cable connection
- Plastic housing, metal shell, solder terminals, O-ring seal
- Waterproof power connector for equipment and machinery
- 12 signal/power contacts
- 5A max per pin
- Black and silver
- IP67
- Power connection and signal transmission
- 50/60Hz
- 250V AC/DC
- -20C to +85C
- Waterproof, dustproof, easy installation, rugged design
- Shell size 20mm
- Bayonet lock
- > 2000 M at 500V DC
- O-ring gasket
- Copper alloy with gold plating
- 12
- 5m
- 6-12mm
- > 500 mating cycles
- Panel mount or cable mount
- UL94-V0
- High-grade plastic with zinc alloy metal ring
LP20 250V 5A 12Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information
- 7 Days
Product Description
Brand:CNLINKOConnecting Mode:Latching Lock connect
Cable Specification:0.340.75mm/22-20AWG
Diameter Range:7mm 10mm
Operating Voltage:250V
Withstand Voltage(AC.V)1min:1500V
Insulation Resistance:> 500MOhm
Durability:> 1500 mating & unmating cycles
Temperature Rating:-40C80C
Reliable Waterproof Connection
With an IP67 rating and an O-ring sealing method, the LP20 connector ensures reliable protection against water and dust ingress. Its rugged plastic and zinc alloy construction, coupled with the flame-retardant UL94-V0 grade, provides resilience and safety even in demanding outdoor or industrial applications.
Versatility for Multiple Applications
The 12-pin female plug accommodates a broad range of power and signal connections. Suitable for use in industrial automation, power distribution, LED lighting, and outdoor equipment, it supports both panel and cable mount installations, making it highly adaptable for integrators and field technicians alike.
Durability and Performance
Engineered for over 500 mating cycles and operating from -20C to +85C, the connector combines long-term durability with consistent electrical performance. Low contact resistance ensures efficient conductivity, while gold-plated copper alloy contacts maintain signal integrity in harsh environments.
FAQ's of LP20 250V 5A 12Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:
Q: How is the LP20 12Pin Female Plug installed for a waterproof connection?
A: The LP20 connector uses a panel or cable mount installation with a bayonet lock and an O-ring gasket to secure the connection, ensuring an IP67 waterproof and dustproof performance suitable for outdoor or demanding industrial environments.Q: What applications are best suited for this 12-pin waterproof connector?
A: This connector is ideal for industrial automation, LED lighting systems, outdoor equipment, power distribution setups, and any environment requiring a weatherproof and durable multi-pin power connection.Q: When should I use a connector with an IP67 rating like the LP20?
A: You should use an IP67-rated connector whenever your application involves exposure to moisture, dust, or requires reliable sealing, such as in outdoor installations or harsh industrial settings.Q: Where can the LP20 connector be mounted?
A: The LP20 connector is designed for versatile mounting and can be installed either on equipment panels or attached directly to cables, accommodating cable diameters from 6 to 12mm.Q: What is the process for connecting wires to the LP20 plug?
A: Wires are connected to the LP20 using solder terminals located on the rear of the 12-pin female interface, providing a secure and stable electrical connection for each pin.Q: Why benefit from gold-plated copper alloy contacts in this connector?
A: Gold-plated copper alloy contacts deliver superior electrical conductivity and corrosion resistance, ensuring low contact resistance and reliable signal or power transmission even after extended use.Tell us about your requirement
