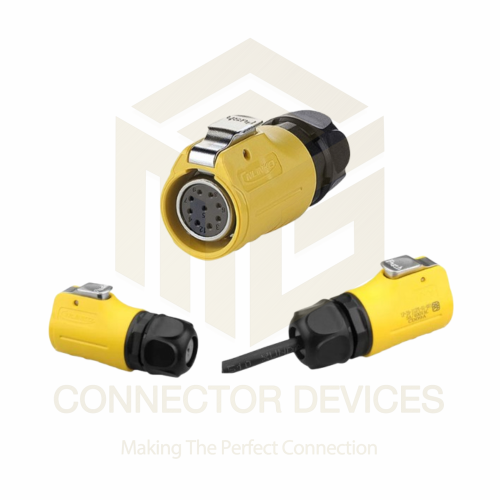

LP20 250V 5A 9Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

534.0 INR/Piece

Get a Price/Quote

Product Details:

Output Panel or cable output connection
Power Supply AC/DC
Operating Temperature -25C to +85C
Input 9-Pin Female Input
Power Source Wired
IP Rating IP67
Components Plastic+Metal shell, solder terminals
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP20 250V 5A 9Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Price 534.0 INR/Piece
Minimum Order Quantity 100 Piece

Number of Pins 9 pins
Mounting Type Panel mount / Cable mount
Contact Material Copper Alloy, gold plated
Connector Type Female Plug
Terminal Type Solder terminal
Cable Diameter Range 6mm-12mm
Shell Material Plastic with metal lock ring
Standards Compliance IEC60529
Flame Retardancy UL94-V0
Mating Cycle Durability >500 cycles

LP20 250V 5A 9Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Power Supply AC/DC
Color Black and Silver
Weight Approx. 45g
Usage Electrical connections in harsh environments
Operating Temperature -25C to +85C
Product Type Waterproof Power Connector
Interface 9-pin female solder terminal
Output Panel or cable output connection
Application Industrial automation, LED lighting, machinery, outdoor equipment
Dimension (L*W*H) Approx. 68mm x 25mm diameter
Current Rating 5A per pin
IP Rating IP67
Components Plastic+Metal shell, solder terminals
Rated Voltage 250V
Input 9-Pin Female Input
Function Power and signal transmission for industrial equipment
Power Source Wired
Size LP20 Series
Features Weatherproof, dustproof, corrosion-resistant, safe locking mechanism
Capacity 5A max per pin
Supply Voltage 250V

Number of Pins 9 pins
Mounting Type Panel mount / Cable mount
Contact Material Copper Alloy, gold plated
Connector Type Female Plug
Terminal Type Solder terminal
Cable Diameter Range 6mm-12mm
Shell Material Plastic with metal lock ring
Standards Compliance IEC60529
Flame Retardancy UL94-V0
Mating Cycle Durability >500 cycles

LP20 250V 5A 9Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Latching Lock connect
Cable Specification:0.340.75mm/22-20AWG
Diameter Range:7mm10mm
Operating Voltage:250V
Durability:> 1500 mating & unmating cycles
Temperature Rating:-40C80C

Rugged Reliability for Industrial Applications

Engineered for demanding environments, the LP20 connector is built to resist dust, moisture, and corrosive elements. Its robust shell and secure locking mechanism ensure consistent performance, even with frequent use. Designed according to IEC60529 standards and flame retardancy UL94-V0, this connector is suitable for machinery, automation, and outdoor installations, delivering confidence in every connection.

Effortless Installation and Strong Connectivity

With solder terminal contacts and a cable diameter range of 6mm-12mm, this connector streamlines the assembly process for panel mount or cable mount setups. Its female 9-pin configuration and gold-plated copper alloy contacts ensure stable power and signal transmission, promoting long-lasting performance over 500 mating cycles.

Versatile Power and Signal Solution

Perfect for a variety of industrial and outdoor applications, the LP20 connector handles both AC and DC power supplies up to 250V, supporting a range of automated equipment, LED installations, and machinery. Its weatherproof, dustproof, and corrosion-resistant design meets stringent safety and durability requirements, making it a versatile choice for engineers and maintenance professionals.

FAQ's of LP20 250V 5A 9Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How does the LP20 9Pin Female Plug ensure protection in harsh environments?

A: The LP20 connector is IP67 rated, providing complete protection against dust and temporary immersion in water. Its corrosion-resistant plastic and metal shell, along with a secure metal lock ring, safeguard the internal contacts from environmental hazards, making it robust for industrial and outdoor use.

Q: What steps are involved in installing this connector?

A: Installation involves soldering wires to the terminal points, securing the cable through the gasket (accepting cable diameters from 6mm to 12mm), and mounting the connector using either panel mount or cable mount options. The metal locking mechanism ensures a safe and stable connection after assembly.

Q: When should I use this connector in my application?

A: Use the LP20 9Pin Female Plug whenever your project requires reliable power and signal transmission in conditions exposed to moisture, dust, or mechanical stress, such as in industrial automation, LED lighting systems, outdoor equipment, or anywhere a weatherproof connection is critical.

Q: Where can the LP20 connector be applied?

A: This connector is ideal for use in industrial settings, machinery, automated systems, outdoor installations, and harsh environments requiring dependable and secure electrical connections. Its compliance with IEC60529 standards ensures suitability for global applications.

Q: What benefits does gold plating on the contacts provide?

A: The gold plating on copper alloy contacts enhances electrical conductivity, resists corrosion, and ensures reliable signal transmission over prolonged use, supporting over 500 mating cycles.

Q: Can the connector support both AC and DC power transmission?

A: Yes, the LP20 9Pin Female Plug is rated for both AC and DC power supplies up to 250V, supporting versatile equipment needs within its current rating of 5A per pin.

Q: What makes this connector safe and reliable for repeated usage?

A: With a mating cycle durability of over 500 cycles, a secure locking mechanism, UL94-V0 flame retardancy, and high ingress protection, the connector maintains safe, stable, and long-lasting performance even with regular disconnection and reconnection.
