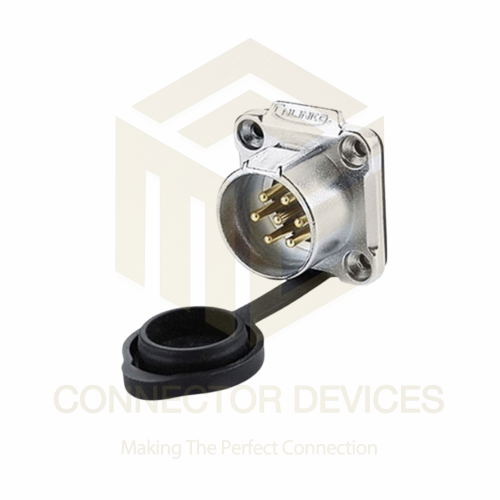

LP20 500V 10A 7Pin Male Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal

Name: LP20 500V 10A 7Pin Male Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 434.0 INR
Availability: InStock

434.0 INR/Piece

Get a Price/Quote

Product Details:

Interface 7 Pin Solder Connection
IP Rating IP67
Output Solder Type Terminal Output
Usage Outdoor/Indoor Power Transmission
Operating Temperature -40C to +80C
Input Solder Type Terminal Input
Power Source Wired Power Connection
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP20 500V 10A 7Pin Male Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Price 434.0 INR/Piece
Minimum Order Quantity 100 Piece

Vibration Resistance 10-2000Hz, 15g
Flange Size Approx. 28mm Diameter
Wire Range 2.5mm2
Contact Material Copper Alloy-Gold Plated
Contact Resistance 2.5m
Mounting Type Panel Mount (Chassis Socket)
Material Metal (Zinc Alloy Shell), PA66 Insert
Storage Temperature -40C to +85C
Mechanical Life >500 Mating Cycles
Insulation Resistance 5000M
Flame Retardant Class UL94-V0
Connection Method Solder Terminal
Standards Compliance RoHS, CE
Sealing Gasket Silicone
Shell Finish Nickel Plated
Locking Mechanism Threaded (Screw-On)

LP20 500V 10A 7Pin Male Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Size Shell Size 20mm
Components Connector shell, 7Pin male insert, sealing ring
Features Metal Shell, Waterproof, Dustproof, Solder Terminals, Screw Lock
Weight Approx. 48g
Function Waterproof Power Connection
Capacity 10A per pin
Product Type 7 Pin Male Socket
Input Solder Type Terminal Input
Rated Voltage 500V
Power Source Wired Power Connection
Power Supply AC/DC
Dimension (L*W*H) Approx. 58mm x 26mm (diameter x length)
Thickness Approximately 2mm (shell)
Operating Temperature -40C to +80C
Application Industrial Equipment, Automation, Outdoor Lighting, Machinery
Supply Voltage 500V Max
Color Silver/Black
Usage Outdoor/Indoor Power Transmission
Current Rating 10A
Output Solder Type Terminal Output
Interface 7 Pin Solder Connection
IP Rating IP67
Frequency 50/60Hz

Vibration Resistance 10-2000Hz, 15g
Flange Size Approx. 28mm Diameter
Wire Range 2.5mm2
Contact Material Copper Alloy-Gold Plated
Contact Resistance 2.5m
Mounting Type Panel Mount (Chassis Socket)
Material Metal (Zinc Alloy Shell), PA66 Insert
Storage Temperature -40C to +85C
Mechanical Life >500 Mating Cycles
Insulation Resistance 5000M
Flame Retardant Class UL94-V0
Connection Method Solder Terminal
Standards Compliance RoHS, CE
Sealing Gasket Silicone
Shell Finish Nickel Plated
Locking Mechanism Threaded (Screw-On)

LP20 500V 10A 7Pin Male Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Latching Lock connect
Cable Specification:1.01.5mm/18-16AWG
Diameter Range:7mm 10mm
Durability:> 1500 mating & unmating cycles
Temperature Rating:-40C80C

Outstanding Durability and Safety

Engineered with a metal (zinc alloy) shell and a flame-retardant PA66 insert, the LP20 connector resists impacts, heat, and harsh chemicals. Its IP67 waterproof seal and silicone gasket further enhance protection against dust and moisture, making it suitable for both indoor and outdoor applications.

Reliable Electrical Performance

Equipped with gold-plated copper alloy contacts, this connector ensures low contact resistance (2.5m) and stable power transmission at up to 500V and 10A per pin. It supports frequencies of 50/60Hz, with insulation resistance up to 5000M for added operational security.

Flexible Mounting and Application

Designed as a panel mount (chassis socket), the LP20 7-pin connector is easy to install on a variety of industrial and automation systems. The threaded locking mechanism ensures a secure, vibration-resistant connection, ideal for machinery, outdoor lighting, and power transmission projects.

FAQ's of LP20 500V 10A 7Pin Male Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal:

Q: How do I install the LP20 7Pin Male Socket for my equipment?

A: To install, secure the connector into a panel or chassis using the provided flange (approx. 28mm diameter) and threaded locking mechanism. Solder your wires (up to 2.5mm2) to the pins, then fasten the connector in place to ensure a waterproof IP67 seal.

Q: What are the ideal usage scenarios for this connector?

A: The LP20 500V 10A 7Pin Male Socket is perfect for industrial equipment, automation systems, machinery, and outdoor lighting where reliable, waterproof, and dustproof power connections are required all year round.

Q: Where can I use this connector: indoors or outdoors?

A: Thanks to its IP67 waterproof rating and durable metal shell, this connector is suitable for both indoor and outdoor applications, ensuring performance in environments exposed to dust, moisture, or drastic temperature changes.

Q: What benefits does the gold-plated copper alloy contact material provide?

A: Gold-plated copper alloy contacts deliver superior conductivity and minimal contact resistance, ensuring reliable current transmission and reducing the risk of corrosion or electrical failure over time.

Q: When should I consider using this connector over plastic alternatives?

A: Choose the LP20 metal shell connector when you need enhanced mechanical strength, flame retardancy (UL94-V0), greater vibration resistance (10-2000Hz, 15g), and assurance of a longer operational lifespan (over 500 mating cycles).

Q: What is the connection process for the solder terminals?

A: Simply strip the wire insulation, insert each wire into the correct solder terminal, and solder for a secure connection. The design accommodates wire sizes up to 2.5mm2, making assembly straightforward for both input and output connections.

Q: What certifications and standards does this connector meet?

A: The LP20 7Pin Male Socket is compliant with RoHS and CE standards, ensuring it meets global safety, environmental, and performance regulations for use across multiple industries and applications.
