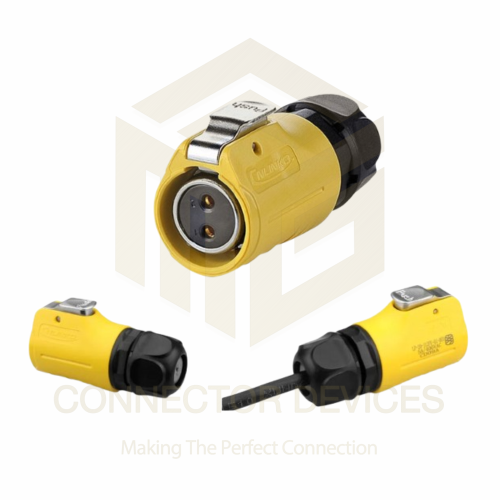

LP20 500V 20A 2Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

Name: LP20 500V 20A 2Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 494.0 INR
Availability: InStock

494.0 INR/Piece

Get a Price/Quote

Product Details:

Interface 2 Pin Solder Terminal
Input 20A max
Output 2 Pins Output
IP Rating IP67
Operating Temperature -40C to +80C
Usage Outdoor and Industrial Power Distribution
Power Supply Compatible with AC/DC supply
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP20 500V 20A 2Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 494.0 INR/Piece

Mating Cycle > 500 cycles
Standards Compliance IEC60529, RoHS
Insulation Resistance > 2000M @ 500VDC
Contact Resistance 5m
Locking Mechanism Threaded Coupling with Anti-Vibration Design
Contact Material Copper Alloy with Silver Plating
Flammability Rating UL94 V-0
Shell Material High-Strength Plastic + Plated Metal
Mounting Method Cable Mount
Termination Method Solder Terminal
Salt Spray Test > 48 hours
Cable Range 6-12mm (cable outer diameter supported)

LP20 500V 20A 2Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

IP Rating IP67
Weight Approx. 40g
Capacity 20A / 2 Pin
Size LP20 series standard size
Output 2 Pins Output
Input 20A max
Frequency 50/60Hz
Interface 2 Pin Solder Terminal
Current Rating 20A
Power Source Electric
Features Waterproof, Dustproof, Corrosion Resistant, Durable, Easy Installation
Components Plastic + Metal Shell, Solder Terminal, IP67 Seal
Rated Voltage 500V
Thickness Shell thickness approx. 1.5mm
Power Supply Compatible with AC/DC supply
Supply Voltage 500V AC/DC
Function Power connection and disconnection for electrical equipment
Color Black and Silver
Usage Outdoor and Industrial Power Distribution
Product Type Female Plug Waterproof Power Connector
Dimension (L*W*H) Approx. 90mm x 28mm x 28mm
Application LED Lighting, Industrial Equipment, Automation, Outdoor Power
Operating Temperature -40C to +80C

Mating Cycle > 500 cycles
Standards Compliance IEC60529, RoHS
Insulation Resistance > 2000M @ 500VDC
Contact Resistance 5m
Locking Mechanism Threaded Coupling with Anti-Vibration Design
Contact Material Copper Alloy with Silver Plating
Flammability Rating UL94 V-0
Shell Material High-Strength Plastic + Plated Metal
Mounting Method Cable Mount
Termination Method Solder Terminal
Salt Spray Test > 48 hours
Cable Range 6-12mm (cable outer diameter supported)

LP20 500V 20A 2Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Latching Lock connect
Cable Specification:2.5mm2 4mm2 /1412AWG
Diameter Range:9mm 13mm
Durability:> 1500 mating & unmating cycles
Temperature Rating:-40C80C

Versatile Outdoor and Industrial Application

Engineered for use in diverse environments, the LP20 connector excels in harsh conditions. With an IP67 waterproof and dustproof rating, it's perfectly suited for outdoor power distribution, industrial equipment, LED lighting, and automation systems. The rugged shell and corrosion-resistant materials make it a dependable solution for both indoor and outdoor projects.

Robust and Secure Connection

The threaded coupling design, combined with an anti-vibration feature, ensures a stable and secure connection even in areas with mechanical stress or movement. This connector's solder terminal provides a reliable connection for power transfer, supporting over 500 mating cycles for long-lasting performance.

Superior Material Quality and Safety

Manufactured with a high-strength plastic shell and a plated metal exterior, the LP20 connector offers optimal protection from harsh elements. The copper alloy contacts, enhanced with silver plating, provide excellent conductivity while maintaining a high level of safety with a UL94 V-0 flammability rating and insulation resistance greater than 2000M at 500VDC.

FAQ's of LP20 500V 20A 2Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How do I install the LP20 500V 20A 2Pin Female Plug?

A: To install, strip your power cable (supports 6-12mm diameter), solder the wires onto the two terminals, and secure the cable using the internal clamp. The threaded coupling and anti-vibration design ensure a tight, stable connection. No special tools are required beyond basic soldering equipment.

Q: What environments is this connector suitable for?

A: This connector meets IP67 waterproof and dustproof standards, making it ideal for outdoor, industrial, and automation applications. It can withstand temperatures from -40C to +80C, offering reliable performance in extreme conditions.

Q: When should I choose this connector over other types?

A: Select the LP20 connector when you need a durable, high-current power connection (up to 20A at 500V) in environments exposed to water, dust, or vibration. Its UL94 V-0 flammability rating and strong mechanical build further ensure safety and reliability.

Q: Where can the LP20 connector be used most effectively?

A: It's best used in LED lighting installations, outdoor power distribution, industrial machines, and automation equipment-anywhere secure, high-capacity connections are required with fast and easy assembly.

Q: What is the process for connecting and disconnecting the plug?

A: Simply align the plug and socket, then use the threaded coupling to lock them. This ensures a tight fit and prevents accidental loosening due to vibration. To disconnect, rotate and unscrew the locking ring.

Q: What are the main benefits of using this power connector?

A: Key advantages include its waterproof/dustproof IP67 rating, high current and voltage capacity, ease of installation, anti-vibration security, and robust build for long-term, dependable use in challenging environments.
