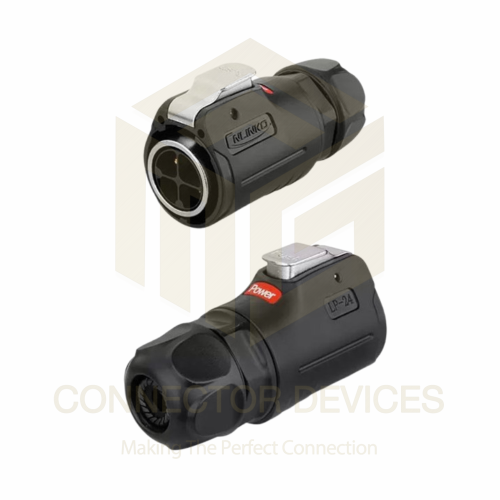

LP24 500V 25A 4Pin Male Plug IP67 Waterproof Power Connector

705.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP67
Output Connector Socket (Not Included)
Power Supply Electric
Thermal Conductivity High Insulation Housing
Power Source Mains (Wired Power)
Usage Power Transmission in Outdoor and Industrial Applications
Components Main Body, Sealing Gasket, Pin Contacts, Screw Cap
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP24 500V 25A 4Pin Male Plug IP67 Waterproof Power Connector Price And Quantity

Price 705.0 INR/Piece
Minimum Order Quantity 100 Piece

Sealing Method Rubber Gasket Compression
Connector Type Male Plug (Cable Mount)
Locking System Screw Coupling
Number of Contacts 4
Wire Range 2.5mm2 - 4.0mm2
Contact Material Copper Alloy with Gold Plating
Flame Class UL94 V-0
Contact Resistance 2.5m
Mounting Style Cable Mountable
Shell Material High-Strength Thermoplastic
Insulation Resistance > 5000M at 500VDC
Mating Cycle Durability > 500 times

LP24 500V 25A 4Pin Male Plug IP67 Waterproof Power Connector Product Specifications

Power Supply Electric
Output Connector Socket (Not Included)
Rated Voltage 500V AC/DC
IP Rating IP67
Product Type 4-Pin Male Plug Waterproof Power Connector
Frequency 50/60Hz
Capacity 25A per Pin
Thermal Conductivity High Insulation Housing
Application Heavy Machinery, Outdoor Lighting, Industrial Equipment, Marine, Renewable Energy Systems
Power Source Mains (Wired Power)
Current Rating 25A
Thickness Standard Industrial Grade Wall Thickness
Usage Power Transmission in Outdoor and Industrial Applications
Supply Voltage 500V
Function Waterproof Power Connection
Weight Approx. 300g
Dimension (L*W*H) Approx. 105mm x 37mm x 37mm
Size LP24 Series (Diameter ~24mm)
Interface LP24 4-Pin Male Plug
Components Main Body, Sealing Gasket, Pin Contacts, Screw Cap
Input 4-pin Male Plug
Color Blue and Black
Operating Temperature -40C to +105C
Features Flame-Retardant, UV Resistant, Screw Locking, Dustproof, Waterproof

Sealing Method Rubber Gasket Compression
Connector Type Male Plug (Cable Mount)
Locking System Screw Coupling
Number of Contacts 4
Wire Range 2.5mm2 - 4.0mm2
Contact Material Copper Alloy with Gold Plating
Flame Class UL94 V-0
Contact Resistance 2.5m
Mounting Style Cable Mountable
Shell Material High-Strength Thermoplastic
Insulation Resistance > 5000M at 500VDC
Mating Cycle Durability > 500 times

LP24 500V 25A 4Pin Male Plug IP67 Waterproof Power Connector Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Insertion and extraction force:6.0N Max
Withstanding voltage:2500V
Contact diameter:Phi 3.0x4
Temperature and humidity:-40+80C; 40C, 85%RH
Mating cycle:1700 times
Screw torque:42-53 (Nim)

Engineered for Extreme Conditions

Built using high-strength thermoplastic and a robust rubber gasket compression sealing method, this connector achieves an IP67 waterproof and dustproof rating-ensuring safe operation even in harsh environments. The gold-plated copper alloy contacts provide excellent electrical conductivity and corrosion resistance, optimizing performance for both outdoor and industrial uses.

Reliable Power Transmission

The LP24 4Pin Male Plug safely manages up to 25A per pin and 500V AC/DC, featuring low contact resistance (2.5m) and high insulation resistance. Its screw locking system and industrial-grade housing eliminate worries about accidental disconnections or environmental damage, making it an ideal choice for high-demand power supply applications.

FAQ's of LP24 500V 25A 4Pin Male Plug IP67 Waterproof Power Connector:

Q: How does the LP24 4Pin Male Plug ensure a waterproof and dustproof connection?

A: The LP24 plug is equipped with a rubber gasket compression sealing method and features an IP67 rating, which protects the internal components from water and dust ingress, making it highly reliable for outdoor and industrial environments.

Q: What is the wire size range compatible with this power connector?

A: It supports wire sizes ranging from 2.5mm2 to 4.0mm2, accommodating various power transmission requirements for heavy equipment and robust electrical installations.

Q: When is this connector recommended for use?

A: This connector is ideal for any scenario requiring waterproof, flame-retardant, and secure power connections-such as heavy machinery, marine installations, outdoor lighting setups, industrial equipment, and renewable energy systems.

Q: Where can the LP24 4Pin Male Plug be installed?

A: Designed as a cable-mountable plug, it can be rapidly installed on power cables in industrial facilities, construction sites, outdoor energy installations, and marine vessels, providing versatile usability.

Q: What process is involved in connecting or disconnecting this plug?

A: The LP24 plug utilizes a screw coupling locking system, ensuring a firm and secure connection. Installation involves mating it with a compatible socket (not included), tightening the screw cap for a sealed fit, and wiring the suitable power cables according to the guidelines.

Q: What are the main benefits of choosing this connector for power transmission?

A: Users benefit from its high durability (over 500 mating cycles), superior insulation and contact resistance, outstanding waterproof and flame-retardant properties, and the ability to operate reliably across extreme temperatures for consistent, safe power delivery.

Q: How does the gold-plated copper alloy contact material improve performance?

A: Gold plating on copper alloy contacts significantly reduces resistance, enhances corrosion resistance, and ensures long-term stable conductivity, which is crucial for heavy-duty and outdoor power applications.
