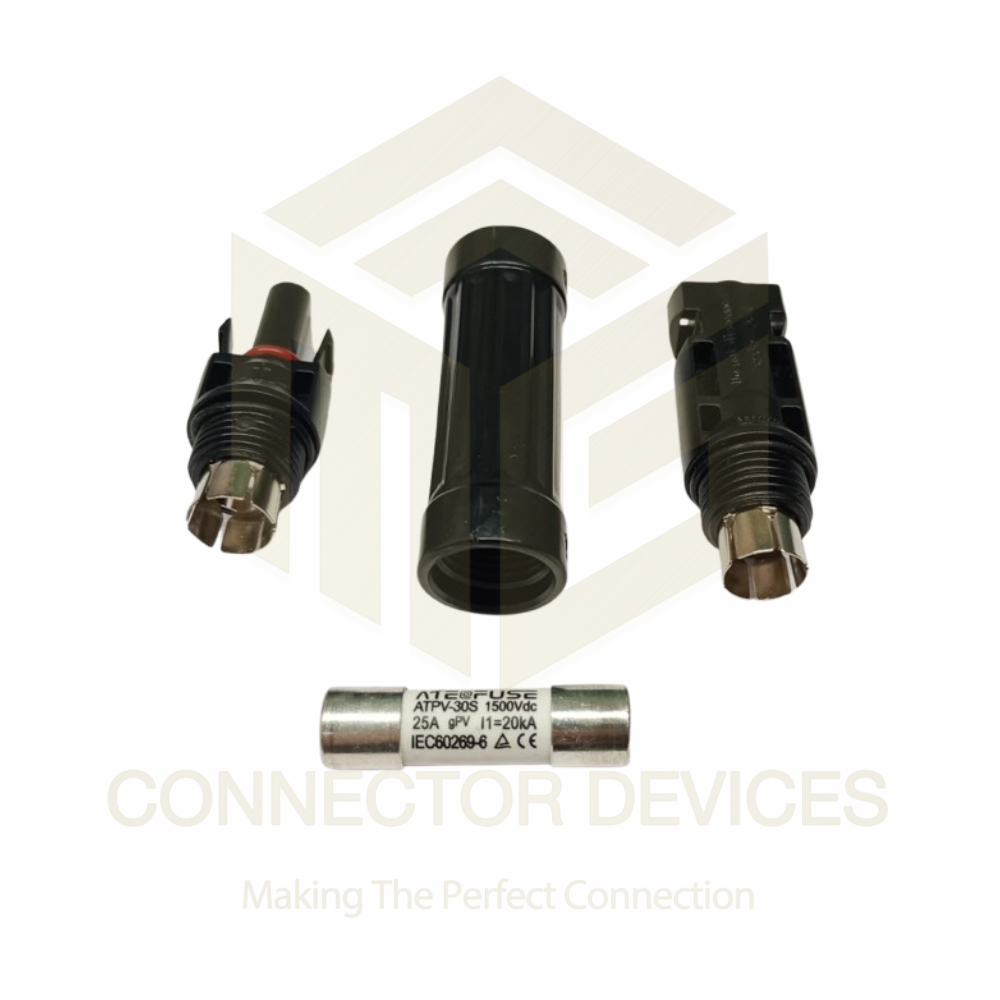

MC4 with Fuse 25A

Get a Price/Quote

Product Details:

Interface MC4 standard
Usage Solar PV installations, solar panel connections
Components MC4 connector, 25A replaceable fuse
Input MC4 male connector
Power Source Not applicable, passive device
Features UV resistant, waterproof, flame retardant, tool-free fuse replacement
Output MC4 female connector
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

MC4 with Fuse 25A Price And Quantity

Minimum Order Quantity 100 Piece

MC4 with Fuse 25A Product Specifications

Features UV resistant, waterproof, flame retardant, tool-free fuse replacement
Power Source Not applicable, passive device
Components MC4 connector, 25A replaceable fuse
Input MC4 male connector
IP Rating IP67
Operating Temperature -40C to +85C
Application Photovoltaic power systems
Size Fits 2.5mm2, 4mm2, 6mm2 solar cable
Weight ~35 g
Response Time Instant (fuse dependent)
Product Type MC4 In-line Fuse Connector
Output MC4 female connector
Current Rating 25A
Function Solar string protection with replaceable inline fuse
Supply Voltage 1000V DC
Rated Voltage 1000V DC
Dimension (L*W*H) ~140 mm x 18 mm (diameter)
Frequency DC only
Color Black
Capacity 25A
Thickness Standard sleeve, approx. 3mm outer
Usage Solar PV installations, solar panel connections
Interface MC4 standard

Contact Material Tinned copper
Mechanical Life > 100 mating cycles
Cable Cross Section Range 2.5mm2 - 6mm2
Max Contact Resistance 0.5 m
Insulation Material PPO (Polyphenylene Oxide)
Clamping Range 4-6 mm outer cable diameter
Fuse Type Cylindrical, 10x38 mm
Flame Class UL94-V0
Protection Class Class II

Product Description

Jump on the opportunity to buy online the premier MC4 with Fuse 25A-an impeccable choice for solar PV installations. Engineered with sizzling technology, this valuable connector features a cylindrical 25A fuse (10x38 mm), tinned copper contacts, and robust PPO insulation that meets flame class UL94-V0. Supporting cable sizes from 2.5mm2 to 6mm2, it offers instant fuse response and a mechanical life exceeding 100 mating cycles. UV-resistant, waterproof, and with tool-free fuse replacement, this Class II protection device ensures reliable solar string protection. Suitable for manufacturers or installers in India seeking premier, high-quality components.

Versatile Usage for Photovoltaic Power Systems

The MC4 with Fuse 25A is designed for invaluable use in solar PV installations. Ideal for rooftop or ground-mounted solar power plants, it ensures efficient solar string protection. Suitable for surfaces exposed to varying environmental factors, this connector thrives in outdoor solar applications due to its UV resistance and flame-retardant properties. Use it for seamless solar panel connections and system integrity, securing both residential and commercial solar power setups.

Sample Policy and Packaging: Premium Service Guaranteed

We offer a transparent sample policy for the MC4 with Fuse 25A-request your sample to evaluate its impeccable quality. Samples are available at a competitive rate with quotations provided upon inquiry. Each unit receives premier packaging, designed to ensure safe and pristine delivery of every component. Whether you require bulk orders for distribution or need custom packaging, our approach prioritizes protecting valuable product integrity and your satisfaction every step of the way.

FAQ's of MC4 with Fuse 25A:

Q: How does the MC4 with Fuse 25A enhance safety in solar PV installations?

A: This connector integrates a 25A replaceable fuse, offering instant response to overcurrent situations and protecting solar strings from electrical damage. Its Class II rating, flame retardancy, and waterproofing guarantee safety even in challenging environments.

Q: What types of solar applications is the MC4 with Fuse 25A suitable for?

A: It is best suited for photovoltaic (PV) systems, including rooftop, ground-mounted solar plants, and solar panel interconnections. Its robust design enables it to withstand outdoor exposure and ensure lasting performance.

Q: When should the fuse inside the MC4 connector be replaced?

A: The fuse should be replaced if a fault or overcurrent event occurs, which causes the fuse to blow. The tool-free replacement design enables quick and convenient maintenance during solar system servicing.

Q: Where can I use the MC4 with Fuse 25A connector?

A: This connector is applicable in any solar PV installation requiring reliable string protection, such as residential, commercial, and utility-scale solar power systems operating up to 1000V DC.

Q: What is the process to obtain a sample or request a quotation?

A: To request a sample or a detailed quotation for the MC4 with Fuse 25A, contact our sales team. Samples are provided at a competitive rate, and customized quotations are available based on your order volume and packaging preferences.
