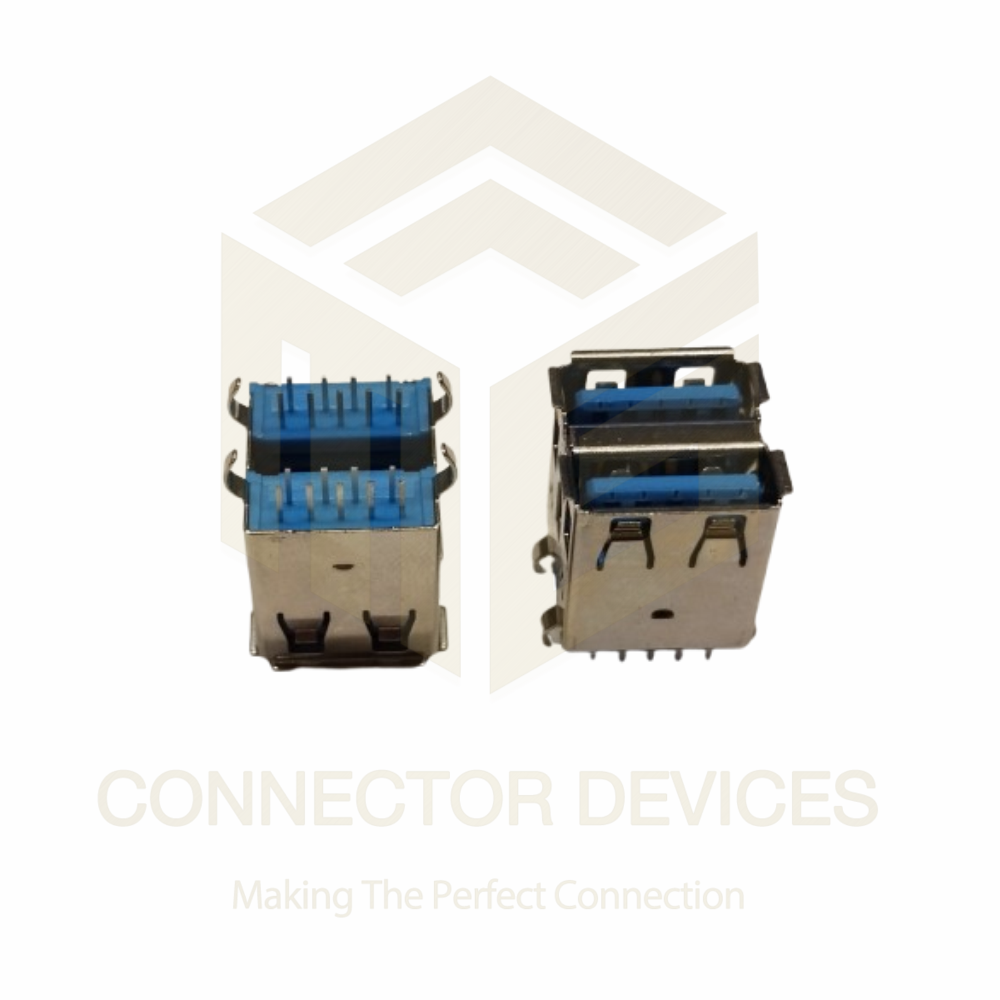

USB A Type Female Dual ST PCB Version 3.0

USB A Type Female Dual ST PCB Version 3.0 Price And Quantity

• Minimum Order Quantity 100 Piece
• Price 00240027 INR/Piece

USB A Type Female Dual ST PCB Version 3.0 Product Specifications

• Color Black and Blue Insulator
• Capacity SuperSpeed Data up to 5 Gbps
• Connector Type Dual USB A Type Female, Right Angle, PCB Mountable
• Number of Conductor 9 Pins per Port (USB 3.0 Dual)
• Sheild Metal Shell
• Wire Gauge 30 AWG (typical for signal lines)
• Flame Resistance Level UL94V-0
• Application PCB Mounting, Data Transfer, Computer Motherboards, Expansion Cards
• Outer Diameter N/A (Connector Only)
• Connector USB A Type Female Dual
• Length N/A (Connector Only)
• Insulation Thermoplastic (UL94V-0)
• Cable Type N/A (Connector Only)
• Male End Type N/A (This Product is Female Connector)
• Material Copper Alloy Contacts, thermoplastic Insulator, Metal Shell
• Pairs Differential Data Pairs - 2
• Jacket Material N/A (Connector Only)
• Voltage Rating 30 V AC
• Female End Type USB A Type Female
• Temperature Operating: 40C to +85C

• Housing Color Blue (USB 3.0 Signature Color)
• Dielectric Withstanding Voltage 750 V AC (1 min)
• Orientation Right Angle Dual Port (Stacked)
• Insulation Resistance 1000 M min @ 500 V DC
• Mounting Style Through-Hole (THT) for PCB
• Contact Plating Gold Flash on Contact Area
• Mating Cycles 1,500 times minimum
• Current Rating 1.8A per pin max
• Contact Resistance 30 m max (initial)
