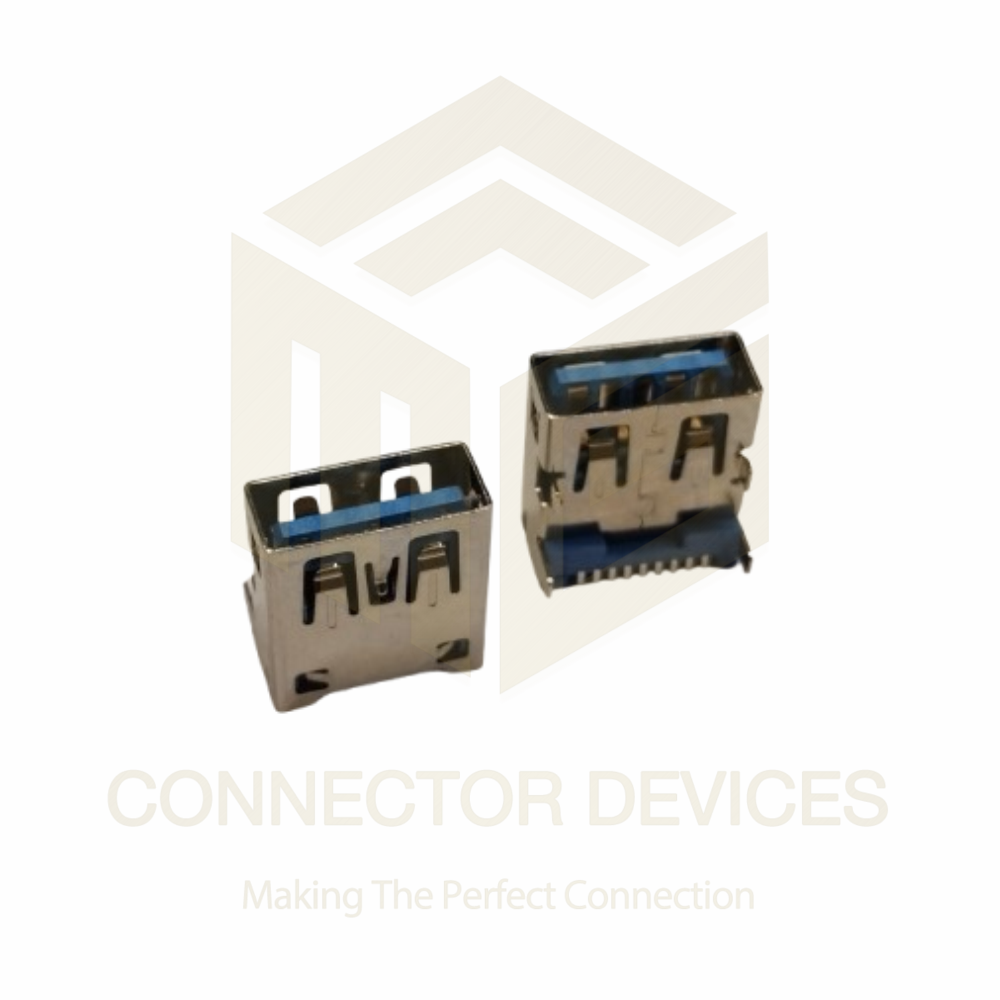

USB A Type Female SMD 9 Pin Version 3.0

Get a Price/Quote

Product Details:

Connector Type SMD (Surface Mount Device)
Capacity Up to 5 Gbps transfer rate
Female End Type A Type Female SMD
Temperature -40C to +85C
Voltage Rating 30V AC (RMS) max
Connector USB A Type Female 3.0
Application PCB Mount, Data transfer, USB 3.0 interface
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

USB A Type Female SMD 9 Pin Version 3.0 Price And Quantity

Minimum Order Quantity 100 Piece

USB A Type Female SMD 9 Pin Version 3.0 Product Specifications

Application PCB Mount, Data transfer, USB 3.0 interface
Flame Resistance Level UL 94V-0
Connector USB A Type Female 3.0
Material Stainless steel & high-temperature thermoplastic
Number of Conductor 9
Sheild Yes, with integral shielding
Capacity Up to 5 Gbps transfer rate
Connector Type SMD (Surface Mount Device)
Voltage Rating 30V AC (RMS) max
Temperature -40C to +85C
Female End Type A Type Female SMD
Color Blue (as per USB 3.0 standard)
Insulation Thermoplastic UL 94V-0

RoHS Compliant Yes
Contact Material Copper Alloy
Withdrawal Force 10N min
Mounting Type Surface Mount (SMD)
Mating Cycles 1,500 cycles min
Compatibility USB 3.0, USB 2.0, USB 1.1 backward compatible
Current Rating 1.8A maximum
Number of Pins 9
Insertion Force 35N max
Contact Plating Gold over Nickel

Product Description

Experience top-rated connectivity with our Exclusive USB A Type Female SMD 9 Pin Version 3.0 connector, crafted for reliability and kingly performance. Featuring impeccable gold-over-nickel contact plating and a copper alloy base, it ensures enviable durability and outstanding data transfer speeds up to 5 Gbps. The robust, RoHS-compliant design with integral shielding and thermoplastic insulation makes this connector a first choice for demanding environments. Explore seamless compatibility with USB 3.0, 2.0, and 1.1 devices, all within a compact, surface-mount form with safety-ensured flame resistance.

Versatile Applications for Modern Industries

The USB A Type Female SMD 9 Pin Version 3.0 is engineered for a variety of application places such as data communication hubs, high-performance electronics, and PCB boards in automation plants. Its impeccable build ensures specific usage in devices needing secure, high-speed data transfer. This connector excels in plant applications, test equipment, and embedded systems where reliability and speed are paramount, making it an indispensable solution for both industrial and commercial uses.

Certified Supply & Reliable Dispatch Services

Our USB A Type Female SMD 9 Pin Version 3.0 connector meets top international safety and performance certifications, including RoHS and UL 94V-0 standards. We offer robust supply and transport services, ensuring safe packing & timely dispatch via major FOB ports across India. With scalable supply ability, all products are exported, imported, and distributed efficiently, guaranteeing that our clients receive the most reliable connectors promptly and in impeccable condition, anywhere in the world.

FAQ's of USB A Type Female SMD 9 Pin Version 3.0:

Q: How does the USB A Type Female SMD 9 Pin Version 3.0 ensure high-speed data transfer?

A: This connector supports up to 5 Gbps data transfer rates, thanks to its USB 3.0 compatibility and 9-pin configuration, ensuring swift and efficient data throughput for demanding applications.

Q: What certifications does the USB connector comply with?

A: The connector is RoHS compliant and meets the UL 94V-0 flame resistance level, guaranteeing eco-friendly standards and enhanced safety for industrial and commercial applications.

Q: Where can this USB connector be used?

A: It is ideal for mounting on PCBs in data centers, automation plants, high-speed electronic modules, and embedded system boards where reliable performance is essential.

Q: What benefits does the gold-over-nickel contact plating provide?

A: Gold-over-nickel plating gives the connector superior corrosion resistance and impeccable conductivity, resulting in longer lifespan and more reliable connections.

Q: How does the product's supply and dispatch service operate?

A: We provide dependable packing and dispatch through major transport services and FOB ports in India, ensuring secure handling and prompt delivery for both local and international orders.
