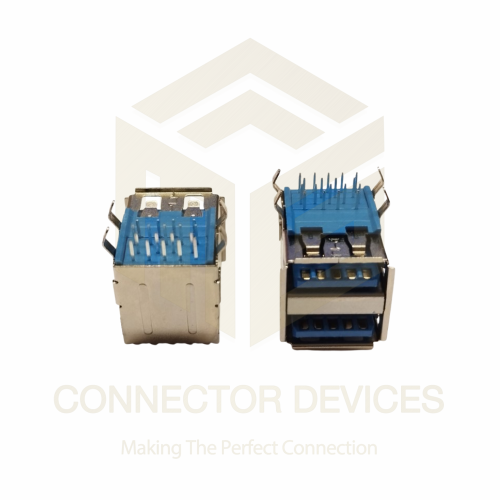

USB A TYPE FEMALE DUAL RA PCB 3.0

175 INR/Piece

Get a Price/Quote

Product Details:

Male End Type N/A (female connector)
Capacity Supports USB 3.0 High-Speed Data Transfer (up to 5Gbps)
Application PCB Mounting, USB 3.0 Data and Power Transfer
Female End Type USB-A Type Female Dual Port
Temperature -40C to +85C Operating Range
Connector USB-A Type Female Dual Port Right Angle
Material Copper Alloy (Contact), Stainless Steel (Shield), Thermoplastic (Housing)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

USB A TYPE FEMALE DUAL RA PCB 3.0 Price And Quantity

Minimum Order Quantity 100 Piece
Price 175 INR/Piece

Dielectric Withstanding Voltage 750V AC/minute
Current Rating 1.5A Max
Insulation Resistance 1000M Minimum @ 500V DC
Contact Resistance 30m Maximum
Standard USB 3.0 SuperSpeed
Insertion Force 35N Maximum
Shielding Full Metal Shell
Number of Ports Dual (2x) USB-A Female
Pitch 2.5mm (between pins)
Extraction Force 10N Minimum
Contact Plating Gold Flash Over Nickel
Mating Cycles 1500 Cycles Minimum
Compliance RoHS, REACH
Mounting Type Right Angle (RA), PCB Through Hole

USB A TYPE FEMALE DUAL RA PCB 3.0 Product Specifications

Sheild Yes, with full metal shell for EMI/RFI protection
Cable Type N/A (Connector only)
Voltage Rating 30V AC (Max)
Jacket Material N/A (for connector only)
Connector Type USB 3.0 Dual Right Angle, PCB Mount
Pairs N/A (for connector only)
Insulation High-Temperature Thermoplastic UL94V-0
Length N/A (PCB Mount)
Number of Conductor N/A (for connector only)
Outer Diameter N/A (for connector only)
Male End Type N/A (female connector)
Capacity Supports USB 3.0 High-Speed Data Transfer (up to 5Gbps)
Color Blue (Plastic Core), Silver (Shell)
Cable Length N/A (for connector only)
Female End Type USB-A Type Female Dual Port
Application PCB Mounting, USB 3.0 Data and Power Transfer
Flame Resistance Level UL94V-0
Material Copper Alloy (Contact), Stainless Steel (Shield), Thermoplastic (Housing)
Wire Gauge N/A (for connector only)
Temperature -40C to +85C Operating Range
Connector USB-A Type Female Dual Port Right Angle

Dielectric Withstanding Voltage 750V AC/minute
Current Rating 1.5A Max
Insulation Resistance 1000M Minimum @ 500V DC
Contact Resistance 30m Maximum
Standard USB 3.0 SuperSpeed
Insertion Force 35N Maximum
Shielding Full Metal Shell
Number of Ports Dual (2x) USB-A Female
Pitch 2.5mm (between pins)
Extraction Force 10N Minimum
Contact Plating Gold Flash Over Nickel
Mating Cycles 1500 Cycles Minimum
Compliance RoHS, REACH
Mounting Type Right Angle (RA), PCB Through Hole

Product Description

Jump on our reduced sale for the top-ranking USB A TYPE FEMALE DUAL RA PCB 3.0 connector! Featuring dual right-angle USB-A ports with 1.5A max current and a potent gold flash over nickel contact plating, this invincible connector powers high-speed USB 3.0 data transfer-up to 5Gbps. Designed for PCB mounting, it ensures robust performance with its full metal shell for EMI/RFI protection, superior 1500-cycle durability, and RoHS/REACH compliance. Take advantage now-stock is ready for distributor, exporter, importer, manufacturer, trader, and wholesaler needs in India!

Feature-Rich USB 3.0 Dual Port Solution

This USB A TYPE FEMALE DUAL RA PCB 3.0 connector boasts potent gold-plated contacts and a high-temperature UL94V-0 thermoplastic housing for enhanced safety. Its right-angle design fits seamlessly into PCB applications, supporting robust data and power transfer. With full metal shielding for invincible EMI/RFI protection, it is suitable for a variety of electronic machines requiring reliable USB connectivity. This connector is perfect for high-speed data transfer in demanding machine and PCB environments.

Flexible Supply and Reliable Delivery

Our transport services guarantee prompt stock ready shipment and safe drop-off for your USB connector orders. We provide ample supply capability suited for bulk orders or smaller projects. Each unit is carefully packed to prevent damage, and we offer transparent delivery timeframes, ensuring your components reach you without delay. Whether you require regular imports or single-project supply, our logistics and inventory are equipped for versatile delivery across India and export markets.

FAQ's of USB A TYPE FEMALE DUAL RA PCB 3.0:

Q: How does the dual port USB-A Type Female connector benefit my PCB application?

A: The dual port design offers increased connectivity and high-speed USB 3.0 data transfer (up to 5Gbps), making it ideal for devices requiring reliable, fast, and simultaneous connections in PCB-mounted environments.

Q: What materials ensure the durability and performance of this connector?

A: The connector utilizes high-temperature UL94V-0 thermoplastic housing, copper alloy contacts with gold flash over nickel plating, and a full metal stainless-steel shell for potent, invincible performance and EMI/RFI protection.

Q: Where can this USB connector be used?

A: It is designed for PCB mounting and is widely used in electronic machines, data communication equipment, consumer electronics, and projects demanding robust USB 3.0 connectivity.

Q: What is the supply and delivery process for this product?

A: We maintain stock ready for immediate dispatch and utilize efficient transport services to ensure safe and timely drop-off. Customized packing ensures product safety during transit.

Q: When should I use this connector over other USB types?

A: Choose this USB A TYPE FEMALE DUAL RA PCB 3.0 connector when you require dual-port, right-angle PCB mounting with superior EMI/RFI shielding and the advanced speed of USB 3.0 in your applications.
