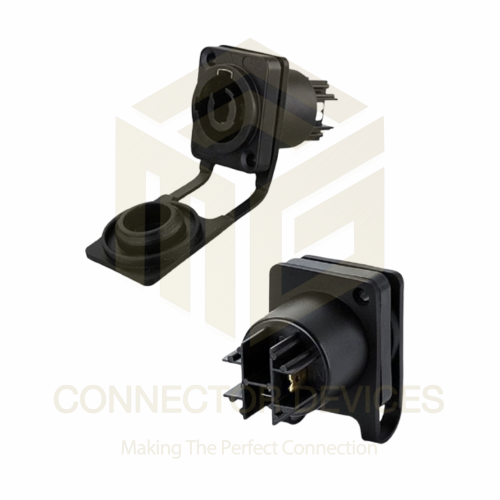

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Socket Power-In Connector Plastic Shell Solder Terminal

Name: YF24 500V 20A 3Pin PowerCON IP67 Waterproof Socket Power-In Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 191.0 INR
Availability: InStock

191.0 INR/Piece

Get a Price/Quote

Product Details:

Power Source External AC
Usage Outdoor/Industrial Power Connections
Output Not Applicable (Input Connector)
Features Dustproof, Waterproof, Corrosion Resistant, Secure Locking Mechanism
IP Rating IP67
Input 3-Pin Solder Terminal (Power-In)
Components Plastic Shell, Metal Solder Terminals
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Socket Power-In Connector Plastic Shell Solder Terminal Price And Quantity

Price 191.0 INR/Piece
Minimum Order Quantity 100 Piece

Cable Diameter Acceptance 6mm - 12mm (Cable Clamp Range)
Contact Resistance <2m
Flammability Rating UL94 V-0
Shell Material Durable Flame-Retardant Plastic
CE Certification Yes
Number of Pins 3 (Live, Neutral, Earth)
Insulation Resistance >2000M (500V DC)
RoHS Compliance Yes
Dielectric Strength 2500V AC, 1 min
Contact Material Copper Alloy with Silver Plating
Mechanical Life >2000 Mating Cycles
Locking System Twist Lock
Mounting Type Panel Mount with Lock Nut

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Socket Power-In Connector Plastic Shell Solder Terminal Product Specifications

Capacity 20A
Weight 38g (Approx.)
Usage Outdoor/Industrial Power Connections
Supply Voltage 110-500V AC
Current Rating 20A Max
Output Not Applicable (Input Connector)
Size M24 (Panel Mount Diameter: 24mm)
Power Source External AC
Input 3-Pin Solder Terminal (Power-In)
Function Waterproof Power-In AC Connector
Components Plastic Shell, Metal Solder Terminals
Features Dustproof, Waterproof, Corrosion Resistant, Secure Locking Mechanism
Rated Voltage 500V AC
IP Rating IP67
Power Supply AC Power Input
Interface Panel Mount, Solder Terminal
Application Stage Lighting, Audio, Industrial Equipment, Outdoor Power Distribution
Dimension (L*W*H) 56mm x 32mm x 32mm (Approx.)
Operating Temperature -40C to +80C
Color Black & Blue
Product Type PowerCON Socket
Frequency 50/60Hz

Cable Diameter Acceptance 6mm - 12mm (Cable Clamp Range)
Contact Resistance <2m
Flammability Rating UL94 V-0
Shell Material Durable Flame-Retardant Plastic
CE Certification Yes
Number of Pins 3 (Live, Neutral, Earth)
Insulation Resistance >2000M (500V DC)
RoHS Compliance Yes
Dielectric Strength 2500V AC, 1 min
Contact Material Copper Alloy with Silver Plating
Mechanical Life >2000 Mating Cycles
Locking System Twist Lock
Mounting Type Panel Mount with Lock Nut

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Socket Power-In Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Fast Locking
Cable Specification:2.5mm2 4mm2 /1412AWG
Diameter Range:8mm 12mm
Operating Voltage:500V
Durability:> 500 mating & unmating cycles
Temperature Rating:-40C80C

Exceptional Durability and Safety

Crafted with a UL94 V-0 flame-retardant plastic shell and silver-plated copper alloy contacts, the YF24 PowerCON connector supports a mechanical life of over 2000 mating cycles. Its insulation resistance exceeds 2000M and dielectric strength reaches 2500V AC, ensuring user safety in high-stress industrial and outdoor environments.

Superior Waterproof and Dustproof Performance

With an IP67 rating, this connector delivers outstanding protection against water, dust, and corrosion. The twist-lock system and robust panel mount design guarantee secure connections even in challenging or adverse weather conditions, making it ideal for outdoor power and industrial equipment.

Versatile Applications and Easy Installation

The YF24 connector's panel mount with lock nut, wide cable clamp range (6-12mm), and solder terminal system ensure a straightforward installation process. It's suitable for various applications, from stage lighting and audio systems to outdoor power distribution, offering reliable performance across supply voltages of 110-500V AC.

FAQ's of YF24 500V 20A 3Pin PowerCON IP67 Waterproof Socket Power-In Connector Plastic Shell Solder Terminal:

Q: How do I install the YF24 PowerCON IP67 3Pin connector?

A: To install, mount the connector on a 24mm panel cut-out and secure it using the provided lock nut. Connect cables (6-12mm diameter) to the solder terminals corresponding to live, neutral, and earth. Ensure a tight fit to retain the waterproof and dustproof properties.

Q: What environments are ideal for using this waterproof AC connector?

A: This connector is best suited for outdoor and industrial environments such as stage lighting, audio installations, and power distribution units. Its IP67 rating and flame-retardant shell make it particularly reliable in wet, dusty, or corrosive conditions.

Q: What types of cables are compatible with this connector?

A: The YF24 PowerCON accepts cables with diameters from 6mm to 12mm thanks to its adjustable cable clamp, allowing flexibility in industrial and audio applications.

Q: When should I choose this connector over other power connectors?

A: Choose this connector when you need secure, high-capacity AC power connections in harsh environments. The IP67 rating and mechanically robust design make it preferable for use in outdoor settings or where safety and durability are critical.

Q: What are the safety certifications and benefits of this connector?

A: It meets RoHS and CE compliance, with a UL94 V-0 flammability rating, high insulation resistance, and robust dielectric strength. These certifications and features ensure reliable, safe operation for both equipment and users.

Q: How does the twist-lock system benefit my application?

A: The twist-lock system secures the connector during operation, preventing accidental disconnects and ensuring stable, continuous power supply in mobile or vibration-intensive applications.
