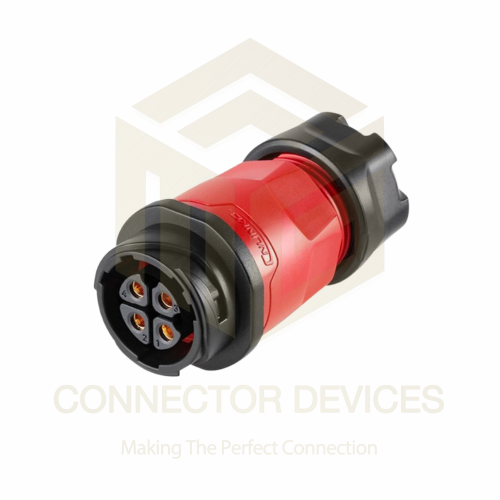

YM20 20A 4Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal

Name: YM20 20A 4Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal
Brand: CONNECTOR DEVICES
Price: 486.0 INR
Availability: InStock

486.0 INR/Piece

Get a Price/Quote

Product Details:

Power Source External/cable
Interface Inline solder terminal
Components Shell, gasket, contacts, solder terminals, cable gland
Input 4-pin female
Features Waterproof, corrosion-resistant, dustproof, secure locking system, flame-retardant, UV-resistant
Power Supply Cable connected power supply
Operating Temperature -40C to +105C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 20A 4Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal Price And Quantity

Price 486.0 INR/Piece
Minimum Order Quantity 100 Piece

Connector Type 4 Pin Female Plug
Withstanding Voltage 1500V AC/minute
Mounting Type Inline, cable-to-cable
Material Nylon PA66, brass/gold-plated contacts
Locking Mechanism Screw coupling
Salt Spray Resistance >48 hours (IEC68-2-11)
Wire Connection Method Solder termination
Insulation Resistance 1000 M at 500 VDC
Contact Resistance 5 m
Sealing Ring Material Silicone rubber
Cable Outer Diameter Range 6mm - 12mm
Number of Mating Cycles >500 times

YM20 20A 4Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal Product Specifications

Color Black
Frequency 50/60Hz
Usage Industrial, Outdoor electrical connections
Dimension (L*W*H) Approx. 100mm (Length) x 29mm (Max Diameter, including nut) x 29mm
Supply Voltage Up to 500V
Function Waterproof power connection for inline applications
Output Cable connection
Application LED lighting, industrial automation, outdoor electronic equipment
Interface Inline solder terminal
Components Shell, gasket, contacts, solder terminals, cable gland
IP Rating IP68
Capacity 20A max current
Product Type Female Power Connector
Weight Approx. 80g
Input 4-pin female
Features Waterproof, corrosion-resistant, dustproof, secure locking system, flame-retardant, UV-resistant
Power Supply Cable connected power supply
Operating Temperature -40C to +105C
Power Source External/cable
Size YM20 Series; Shell Diameter 20mm
Rated Voltage 500V AC / DC
Current Rating 20A
Thickness Standard connector thickness

Connector Type 4 Pin Female Plug
Withstanding Voltage 1500V AC/minute
Mounting Type Inline, cable-to-cable
Material Nylon PA66, brass/gold-plated contacts
Locking Mechanism Screw coupling
Salt Spray Resistance >48 hours (IEC68-2-11)
Wire Connection Method Solder termination
Insulation Resistance 1000 M at 500 VDC
Contact Resistance 5 m
Sealing Ring Material Silicone rubber
Cable Outer Diameter Range 6mm - 12mm
Number of Mating Cycles >500 times

YM20 20A 4Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Insertion and extraction force:4.0N Max
Screw torque:42-53 (N.m)
Mating cycle:1700 Times
Temperature and humidity:-4080C; 40C, 85%RH
Contact dimension:Phi 2.7*2

Superior Waterproof and Corrosion Resistance

With a proven IP68 rating and corrosion resistance exceeding 48 hours (IEC68-2-11), the YM20 connector provides dependable power transmission in environments exposed to water, dust, and salt. Its flame-retardant, UV-resistant nylon PA66 shell ensures long-term durability for outdoor and industrial use.

Versatile Industrial Applications

Engineered for industrial automation, LED installations, and outdoor electronics, this connector serves as a reliable solution where secure, high-current, and robust waterproof connections are required. Its screw coupling mechanism guarantees a solid assembly even when subject to vibration and extreme temperatures.

Easy and Secure Installation

The inline design and solder termination method offer straightforward installation, while the screw locking system prevents accidental disconnection. Supporting cable sizes from 6mm to 12mm, it adapts to a variety of power layouts, ensuring flexibility for manufacturers, installers, and end users.

FAQ's of YM20 20A 4Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal:

Q: How do I install the YM20 20A 4Pin Female Plug with solder terminals?

A: To install the YM20 connector, strip the cable to expose the conductors, solder each wire to the corresponding terminal, securely fasten the cable using the gland, and tighten the screw coupling for a waterproof seal. Ensure the sealing ring is properly positioned to maintain IP68 protection.

Q: What cable sizes are compatible with this power connector?

A: The YM20 plug accommodates cable outer diameters ranging from 6mm to 12mm, providing flexibility for various industrial and outdoor power installations.

Q: Where is the YM20 4Pin connector typically used?

A: This connector is ideal for LED lighting systems, industrial automation, outdoor electronic equipment, and any setup requiring a waterproof, dustproof, and robust power connection, particularly in harsh or exposed environments.

Q: What is the benefit of the gold-plated brass contacts in the YM20 connector?

A: Gold-plated brass contacts improve conductivity, reduce contact resistance to 5 m, and enhance corrosion resistance-ensuring a long-lasting, reliable electrical connection in challenging settings.

Q: How many mating cycles can the YM20 connector withstand before replacement is needed?

A: The connector is rated for over 500 mating cycles, meaning it can be reliably connected and disconnected multiple times without significant wear or loss of performance.

Q: What level of protection does the IP68 rating provide?

A: An IP68 rating guarantees complete dust ingress protection and allows for continuous immersion in water under specified conditions, making it suitable for outdoor and wet industrial environments.

Q: Is the YM20 connector resistant to UV and flame exposure?

A: Yes, the connector's PA66 shell is designed to be UV-resistant and flame-retardant, ensuring safe use in outdoor and high-temperature environments.
