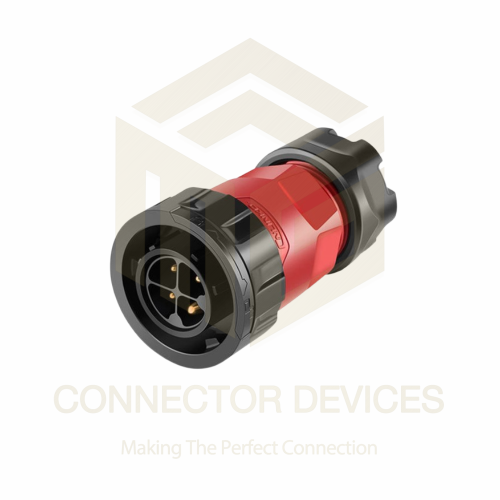

YM20 20A 4Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal

402.0 INR/Piece

Get a Price/Quote

Product Details:

Usage Cable to cable or device connection
Interface 4-pin solder terminal
Operating Temperature -40C to +105C
Input 4-pin male plug, solder terminal type
Power Supply AC/DC
Power Source External electrical circuit
Features Dustproof, waterproof, corrosion resistant, quick connection
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 20A 4Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 402.0 INR/Piece

Flame Retardant Grade UL94 V-0
Number of Pins 4
Contact Material Brass with gold plating
Cable Diameter Range 6mm - 12mm
Mounting Type Cable inline
Packing Individual polybag
Sealing Method Silicone gasket with thread locking
Standards Compliance RoHS compliant
Insulation Resistance >2000M (at 500V DC)
Mechanical Life >500 mating cycles
Contact Resistance 1m
Locking System Threaded coupling
Connection Mode Soldering terminal
Shell Material High-strength PA66 plastic

YM20 20A 4Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Application Outdoor lighting, power equipment, marine, automation
Components Plastic shell, brass gold-plated terminals, sealing ring
Product Type IP68 Waterproof Power Connector
Output Female counterpart (not included)
Current Rating 20A max
Power Supply AC/DC
Power Source External electrical circuit
Supply Voltage Up to 500V AC/DC
Thickness Shell thickness approx. 2.0mm
Weight Approx. 75g
Features Dustproof, waterproof, corrosion resistant, quick connection
IP Rating IP68
Rated Voltage 500V AC
Frequency 50/60Hz
Interface 4-pin solder terminal
Operating Temperature -40C to +105C
Capacity 20A max
Input 4-pin male plug, solder terminal type
Dimension (L*W*H) Approx. 86mm x 32mm x 32mm
Size Shell size 20mm (YM20 series)
Color Black
Function Power connection for industrial and outdoor applications
Usage Cable to cable or device connection

Flame Retardant Grade UL94 V-0
Number of Pins 4
Contact Material Brass with gold plating
Cable Diameter Range 6mm - 12mm
Mounting Type Cable inline
Packing Individual polybag
Sealing Method Silicone gasket with thread locking
Standards Compliance RoHS compliant
Insulation Resistance >2000M (at 500V DC)
Mechanical Life >500 mating cycles
Contact Resistance 1m
Locking System Threaded coupling
Connection Mode Soldering terminal
Shell Material High-strength PA66 plastic

YM20 20A 4Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Insertion and extraction force:4.0N Max
Screw torque:42-53 (N.m)
Mating cycle:1700 Times
Temperature and humidity:-4080C; 40C, 85%RH
Contact dimension:Phi 2.7*2

Superior Protection for Harsh Environments

Engineered to withstand the elements, the YM20 4Pin plug achieves an IP68 rating, offering exceptional resistance to dust and water ingress. A thick PA66 plastic shell and high-grade silicone sealing ring ensure reliability even in challenging outdoor, marine, and industrial scenarios. Its flame retardant grade UL94 V-0 adds an extra layer of safety against fire risks, making it a dependable choice for critical applications.

Reliable Power Connectivity

With a current capacity up to 20A and rated for voltages up to 500V AC/DC at 50/60Hz, the connector's four gold-plated brass terminals deliver consistent, low-resistance performance. The threaded coupling system enables quick yet secure assembly, while the solder terminal design ensures robust connections. Each unit passes strict insulation and contact resistance tests, maintaining high operating standards across over 500 cycles of use.

User-Friendly Installation and Versatility

The cable inline mounting and wide cable diameter accommodation (6mm-12mm) simplify integration into various setups. Its compact, lightweight design (approx. 75g) and compatibility with a broad range of cable types make the YM20 suitable for device-to-device or cable-to-device installations. Perfect for electrical contractors, manufacturers, or DIY enthusiasts, it streamlines power connections in outdoor lighting, automation, and marine equipment.

FAQ's of YM20 20A 4Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How do I properly install the YM20 20A 4Pin Male Plug?

A: Install by stripping your cable to fit the 6mm-12mm range, soldering each wire to the designated brass gold-plated terminals, and securing the cable with the threaded coupling. The silicone gasket must sit in place to preserve the IP68 waterproof rating. Always verify connections match the device or cable requirements.

Q: What types of applications is this connector suitable for?

A: The YM20 4Pin plug is ideal for outdoor lighting, marine power systems, industrial automation, power distribution, and equipment requiring robust, high-amperage and weatherproof connections. Its rugged build suits harsh, moisture-prone, or exposed environments.

Q: When should I choose solder terminals over other connection methods?

A: Solder terminals are best when you need a long-lasting, low-resistance joint that tolerates vibration or harsh conditions. They are particularly useful for permanent or semi-permanent installations outdoors or in industrial settings where dependability is critical.

Q: Where can I use the YM20 connector considering its specifications?

A: You can deploy this connector in virtually any scenario requiring reliable power connections and environmental sealing-outdoor installations, construction sites, marine vehicles, automation equipment, or even in mobile power solutions, as long as your voltage and current do not exceed 500V AC/DC and 20A.

Q: What benefits does the gold-plated brass terminal provide?

A: Gold-plated brass terminals enhance conductivity and resist corrosion, ensuring stable, low-resistance contacts even after repeated use or prolonged exposure to moisture and harsh conditions. This helps maintain the safety and efficiency of your power connections over time.

Q: How does the connector maintain its waterproof and dustproof characteristics?

A: A silicone sealing ring combined with a precision-threaded locking system enables the IP68 rating, preventing water and debris intrusion. Proper assembly and cable fit are essential to maintaining its waterproof and dustproof performance.
