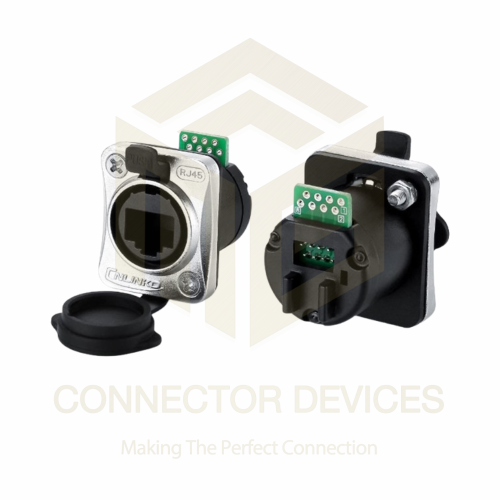

YT RJ45 Connector with PCB Cat6A IP67 Waterproof Female Socket Ethernet Connector Panel Mount

Name: YT RJ45 Connector with PCB Cat6A IP67 Waterproof Female Socket Ethernet Connector Panel Mount
Brand: CONNECTOR DEVICES
Price: 388.0 INR
Availability: InStock

388.0 INR/Piece

Get a Price/Quote

Product Details:

Output RJ45 Ethernet signal
Operating Temperature -40C to +85C
Features Panel mount, waterproof, dustproof, corrosion resistant, shielded, UV-resistant, robust design
IP Rating IP67
Usage Ethernet network interface, outdoor or harsh environments
Interface RJ45 Female socket
Components Connector body, waterproof sealing, PCB, mounting flange
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YT RJ45 Connector with PCB Cat6A IP67 Waterproof Female Socket Ethernet Connector Panel Mount Price And Quantity

Minimum Order Quantity 100 Piece
Price 388.0 INR/Piece

Sealing Gasket Integrated rubber gasket for waterproofing
Insulation Resistance 500 M at 500 V DC
RoHS Compliance Yes
Mounting Style Panel Mount with locknut
Flammability Rating UL94 V-0
Insertion/Withdrawal Cycles 750 times
Cable Compatibility Cat6A, Cat6, Cat5e
Connector Type 8P8C Modular Jack
Material High-strength thermoplastic (housing), gold-plated copper (contacts)
Contact Resistance 20 m
Shielding Type 360 shielding for EMI protection

YT RJ45 Connector with PCB Cat6A IP67 Waterproof Female Socket Ethernet Connector Panel Mount Product Specifications

Dimension (L*W*H) 39.7mm x 26.7mm x 21.5mm (approximate)
Interface RJ45 Female socket
Components Connector body, waterproof sealing, PCB, mounting flange
Input RJ45 Ethernet signal
Frequency 250 MHz (Cat6A rated)
Operating Temperature -40C to +85C
Current Rating 1.5A Max
Size Standard Cat6A panel-mount size
Usage Ethernet network interface, outdoor or harsh environments
IP Rating IP67
Features Panel mount, waterproof, dustproof, corrosion resistant, shielded, UV-resistant, robust design
Function Data transmission and waterproof Ethernet connectivity
Output RJ45 Ethernet signal
Capacity Cat6A performance up to 10 Gbps
Product Type Female Socket Ethernet Connector
Rated Voltage 125V AC
Color Black (housing), Silver (connector)
Application Industrial Ethernet, CCTV systems, Telecom, Data centers, Outdoor panels
Weight Approximately 42g

Sealing Gasket Integrated rubber gasket for waterproofing
Insulation Resistance 500 M at 500 V DC
RoHS Compliance Yes
Mounting Style Panel Mount with locknut
Flammability Rating UL94 V-0
Insertion/Withdrawal Cycles 750 times
Cable Compatibility Cat6A, Cat6, Cat5e
Connector Type 8P8C Modular Jack
Material High-strength thermoplastic (housing), gold-plated copper (contacts)
Contact Resistance 20 m
Shielding Type 360 shielding for EMI protection

YT RJ45 Connector with PCB Cat6A IP67 Waterproof Female Socket Ethernet Connector Panel Mount Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Diameter range:5.57mm
Contact diameterxnumber:8
Contact resistance:< 30mohm
Operating voltage (AC):500V
Durability:>500
Working temperature:-4080C
Modular Interface:RJ45

Superior Protection for Outdoor Applications

Designed with an IP67 rating and UV-resistant housing, this RJ45 connector provides full waterproof and dustproof protection. Its integrated sealing gasket ensures secure data transmission even in harsh environments, making it suitable for outdoor and industrial uses, including telecommunication panels and security systems.

High-Speed, Reliable Connectivity

Delivering Cat6A performance at speeds up to 10 Gbps and 250 MHz, this connector guarantees rapid and reliable Ethernet connections. Gold-plated copper contacts, 360 shielding, and a robust locking mechanism maximize signal integrity and minimize interference for seamless data transfer.

Durable & Easy Panel Mount Design

The panel mount style with a secure locknut enables straightforward installation onto enclosures or panels. Its high-strength thermoplastic build and corrosion-resistant features mean it withstands demanding conditions for prolonged use-rated for 750 insertion and withdrawal cycles.

FAQ's of YT RJ45 Connector with PCB Cat6A IP67 Waterproof Female Socket Ethernet Connector Panel Mount:

Q: How do I install the YT RJ45 Cat6A IP67 connector on my panel?

A: To install, insert the connector into the panel cutout, secure it using the included locknut, and plug your RJ45 cable into the female socket. Ensure the integrated rubber gasket sits flush to maintain the IP67 waterproof seal.

Q: What environments is this waterproof RJ45 connector suitable for?

A: This connector is ideal for outdoor, industrial, and harsh settings such as telecom panels, CCTV installations, industrial Ethernet interfaces, and data centers due to its IP67-rated dustproof and waterproof design.

Q: When should I use a Cat6A IP67 waterproof RJ45 connector instead of a standard one?

A: Use this connector whenever Ethernet connections are required in environments exposed to moisture, dust, or vibration-such as outdoor installations or industrial machinery-where reliability and protection are essential.

Q: What benefits does the 360 shielding provide?

A: The 360 shielding ensures effective EMI protection, maintaining data integrity and minimizing signal loss and interference, particularly important in high-interference industrial or outdoor settings.

Q: How many times can I connect and disconnect cables from this connector?

A: This RJ45 connector is rated for up to 750 insertion and withdrawal cycles, providing durable performance over extended use in demanding environments.

Q: What materials are used in the construction of this connector?

A: The housing is made of high-strength thermoplastic for durability, while the contacts are gold-plated copper to ensure excellent conductivity and corrosion resistance.

Q: What types of Ethernet cables are compatible with this connector?

A: It is compatible with Cat6A, Cat6, and Cat5e Ethernet cables, supporting performance up to 10 Gbps and 250 MHz for a versatile range of applications.
