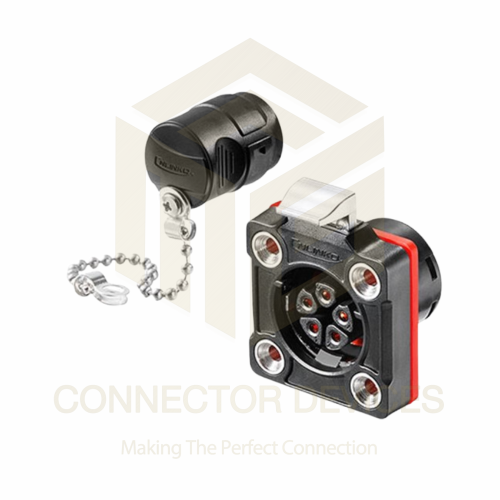

BD20 10A 5Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal

Name: BD20 10A 5Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 720.0 INR
Availability: InStock

720.0 INR/Piece

Get a Price/Quote

Product Details:

Input 5-pin female solder terminals
Usage Outdoor and industrial power connections
IP Rating IP67
Components Plastic shell, solder terminals, flange mount panel
Output Panel-mount output via connector pins
Features Waterproof, dustproof, corrosion-resistant, easy installation
Power Supply Electrical
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

BD20 10A 5Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Price And Quantity

Price 720.0 INR/Piece
Minimum Order Quantity 100 Piece

Contact Material Copper alloy with silver plating
Humidity Resistance Up to 95% RH (non-condensing)
Environmental Compliance RoHS compliant
Mating Cycle >500 mating cycles
Shell Material High-strength flame-retardant plastic
Cable Entry Size Suitable for cable OD 6mm to 12mm
Contact Resistance 5 m
Connector Gender Female
Mounting Type Flange mount with screw holes
Sealing Method Silicone rubber sealing ring
Number of Pins 5 pins
Flammability Rating UL94-V0
Insulation Resistance >1000 M @ 500V DC

BD20 10A 5Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Product Specifications

Rated Voltage 500V AC
Features Waterproof, dustproof, corrosion-resistant, easy installation
Color Black
Output Panel-mount output via connector pins
Components Plastic shell, solder terminals, flange mount panel
IP Rating IP67
Weight Approx. 50g
Usage Outdoor and industrial power connections
Dimension (L*W*H) Approx. 40mm x 40mm x 69mm (including flange and connector body)
Input 5-pin female solder terminals
Function Power connection for electrical devices
Application Lighting, machinery, outdoor equipment, automation
Size BD20 shell size (see dimension below)
Product Type Waterproof power connector socket
Current Rating 10A
Interface 5-pin solder contacts
Power Source Wired power connection
Frequency 50/60 Hz compatible
Power Supply Electrical
Operating Temperature -40C to +85C
Capacity 10A max current
Supply Voltage Up to 500V AC

Contact Material Copper alloy with silver plating
Humidity Resistance Up to 95% RH (non-condensing)
Environmental Compliance RoHS compliant
Mating Cycle >500 mating cycles
Shell Material High-strength flame-retardant plastic
Cable Entry Size Suitable for cable OD 6mm to 12mm
Contact Resistance 5 m
Connector Gender Female
Mounting Type Flange mount with screw holes
Sealing Method Silicone rubber sealing ring
Number of Pins 5 pins
Flammability Rating UL94-V0
Insulation Resistance >1000 M @ 500V DC

BD20 10A 5Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Withstanding voltage:2500V
Operating Voltage:500V
Contact dimension:Phi 3x3
Insertion and extraction force:5.4N Max
Mating cycle:1700 times
Temperature and humidity:-40+80C; 40C, 85%RH

Outstanding Durability and Safety

Manufactured with a UL94-V0 flame-retardant plastic shell and silver-plated copper alloy contacts, this 5-pin female socket delivers dependable electrical safety. Its IP67 rating protects the connector against dust and water ingress, making it ideal for outdoor and harsh environments.

Ease of Installation and Versatility

The flange mount design allows for secure panel attachment using screw holes, facilitating straightforward setup. The solder terminal interface supports reliable wire connections, and compatibility with cable sizes from 6mm to 12mm broadens its application scope in industrial and commercial settings.

Reliable Performance in Extreme Conditions

Engineered to perform between -40C and +85C and withstand up to 95% relative humidity, this power connector maintains electrical integrity and performance. It endures over 500 mating cycles, making it suitable for frequent maintenance and repeated use.

FAQ's of BD20 10A 5Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal:

Q: How is the BD20 10A 5Pin Female Socket installed?

A: This connector is mounted via its flange, secured with screws through dedicated holes onto a panel or enclosure. Wires are soldered to the 5 internal contacts, ensuring a strong, permanent connection.

Q: What applications are suitable for this power connector?

A: It's ideal for outdoor, industrial, and automation systems such as lighting, machinery, and equipment requiring reliable power connections with waterproof and dustproof qualities.

Q: When should I use an IP67 waterproof connector like this one?

A: Use the BD20 socket when you need protection from dust and temporary immersion in water-commonly in outdoor, wet, or harsh industrial environments.

Q: Where can this connector be used for optimal benefit?

A: It's best utilized in places exposed to moisture, dust, or varied weather-such as outdoor lighting systems, machinery on construction sites, or automated equipment needing robust, sealed power connections.

Q: What are the main benefits of the silicone rubber sealing ring?

A: The silicone rubber sealing ring provides superior sealing against water and dust and maintains a reliable barrier, even in high-humidity situations up to 95% RH.

Q: How does the copper alloy with silver plating improve performance?

A: Silver-plated copper alloy contacts ensure excellent electrical conductivity while resisting corrosion, thus reducing power loss and extending the connector's service life.

Q: What is the process for wire connection in this socket?

A: Wires are stripped and soldered onto the 5 dedicated terminals inside the connector, creating secure, low-resistance connections for consistent performance.
