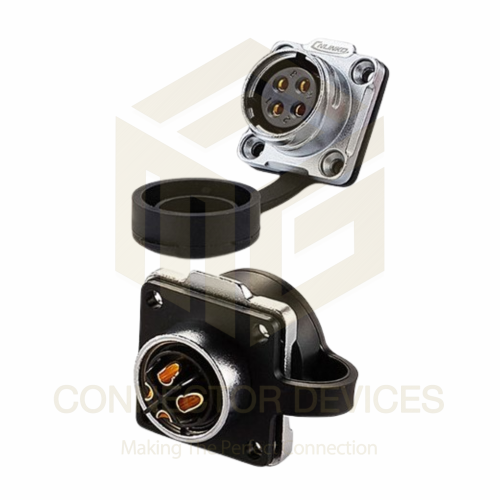

DH20 500V 20A 4Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal

494.0 INR/Piece

Get a Price/Quote

Product Details:

Features Waterproof, Dustproof, Vibration Resistant, Metal Shell, Easy Assembly
Power Supply AC/DC
Operating Temperature -40C to +80C
Input Solder Terminal (4 Pin Female)
Interface 4 Pin Solder Terminal
Output Cable/Equipment Connection
Power Source Wired Power
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH20 500V 20A 4Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 494.0 INR/Piece

DH20 500V 20A 4Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Capacity 20A @ 500V
Function Power connection and distribution
Product Type Waterproof Power Connector
Frequency 50/60Hz
Supply Voltage 500V
Power Supply AC/DC
Weight Approx. 80g
Features Waterproof, Dustproof, Vibration Resistant, Metal Shell, Easy Assembly
Output Cable/Equipment Connection
Current Rating 20A
Color Silver (Metallic)
IP Rating IP67
Application Industrial, Outdoor equipment, Power systems, Automation
Interface 4 Pin Solder Terminal
Components Metal Shell, Solder Terminals, Sealing Gasket
Input Solder Terminal (4 Pin Female)
Rated Voltage 500V
Operating Temperature -40C to +80C
Usage Industrial power application
Dimension (L*W*H) Length Approx. 50mm, Diameter 20mm
Size DH20
Power Source Wired Power

Connector Type Circular Female Socket
Mating Cycle >500 Times
Insulation Resistance >2000M (at 500V DC)
Flame Retardant Grade UL94 V-0
Contact Resistance 2m
Environmental Protection UV Resistant
Number of Pins 4
Terminal Type Solder Terminal
Standards Compliance CE, RoHS
Sealing Method Rubber O-Ring
Locking Mechanism Threaded Coupling
Contact Material Copper Alloy with Silver Plating
Housing Color Silver/Metallic
Shell Material Zinc Alloy with Nickel Plating
Cable Diameter Range 6-12mm
Mounting Type Panel Mount

DH20 500V 20A 4Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Experience a reduced price on the DH20 500V 20A 4Pin Female Socket-your sublime, sterling solution for power connectivity. This first-rate, limited time hot deal features a robust zinc alloy shell with nickel plating, copper alloy contacts with silver plating, and a waterproof IP67 rating that ensures resilient performance even in harsh environments. Designed for reliable use over 500 mating cycles, its UL94 V-0 flame retardant standard and threaded coupling provide safety and security for industrial applications. Seize this export-quality socket while stocks last!

Superior Material and Reliable Application

The DH20 500V 20A 4Pin Female Socket excels with a zinc alloy metal shell and solder terminals, ensuring both durability and sublime connectivity. Protected with a rubber O-ring and UV-resistant silver-plated contacts, it achieves superior insulation resistance and meets stringent CE and RoHS standards. Its flawless design is perfectly suited for industrial media, including plant automation systems and outdoor power equipment, making it the first-rate choice for demanding application environments.

Global Market Reach, Certified Quality and Sample Policy

Targeting both domestic markets and international territories, the DH20 connector stands out in global estimates as a popular choice for distributors and wholesalers. Backed by sterling certifications like CE, RoHS, and environmental compliance, this socket guarantees trustworthy performance. For first-time buyers, sample policies are available, providing assurance prior to bulk sales. Take advantage of this sale price and elevate your business with this export-standard power connector, recognized for quality and reliability.

FAQ's of DH20 500V 20A 4Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal:

Q: How does the DH20 4Pin Female Socket ensure waterproof and dustproof protection?

A: The DH20 socket features an IP67-rated, zinc alloy metal shell with a rubber O-ring sealing method, delivering exemplary protection against water and dust ingress, making it ideal for industrial and outdoor applications.

Q: What materials are used in the construction of the DH20 connector?

A: The connector is crafted from a zinc alloy shell with nickel plating, and its contacts are made of copper alloy with silver plating. This combination ensures both structural integrity and excellent electrical conductivity.

Q: When is the best time to purchase the DH20 socket at a reduced price?

A: This connector is currently available as a hot deal for a limited time only. It is advisable to take advantage of this offer now to secure the product at a reduced sale price before it returns to standard rates.

Q: Where can the DH20 socket be applied in industrial settings?

A: The DH20 socket is engineered for use in industrial power applications such as plant automation, power distribution systems, and outdoor equipment, owing to its robust and reliable construction.

Q: What main certifications does the DH20 4Pin Female Socket comply with?

A: It meets CE and RoHS standards, ensuring high safety, environmental protection, and reliability for both domestic and export markets.

Q: How easy is the installation process for the DH20 connector?

A: The panel mount design with threaded coupling and solder terminals provides easy and secure installation, making assembly straightforward for both OEMs and maintenance teams.
