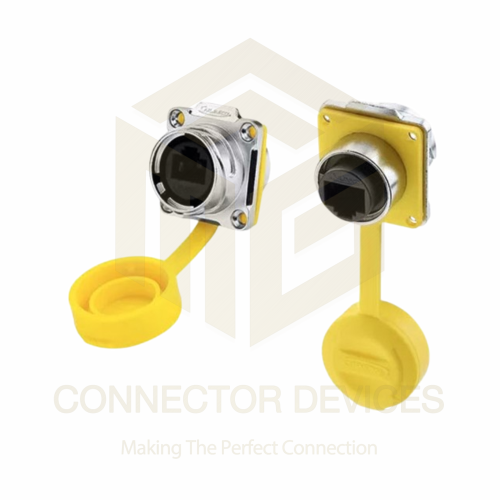

DH24 RJ45 Cat5e Female Socket IP67 Waterproof Ethernet Connector Panel Mount

Name: DH24 RJ45 Cat5e Female Socket IP67 Waterproof Ethernet Connector Panel Mount
Brand: CONNECTOR DEVICES
Price: 372.0 INR
Availability: InStock

372.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP67
Interface RJ45 Ethernet, Female
Features Waterproof, Dustproof, Weatherproof, Easy Installation, Panel Mount
Operating Temperature -40C to +85C
Input RJ45 Male Connector
Display Type No Display
Power Source No Power Required
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH24 RJ45 Cat5e Female Socket IP67 Waterproof Ethernet Connector Panel Mount Price And Quantity

Minimum Order Quantity 100 Piece
Price 372.0 INR/Piece

DH24 RJ45 Cat5e Female Socket IP67 Waterproof Ethernet Connector Panel Mount Product Specifications

Display Type No Display
Dimension (L*W*H) Approx. 48mm x 28mm x 28mm
IP Rating IP67
Thickness Panel Thickness 1.5 - 3mm
Product Type RJ45 Cat5e Female Socket Panel Mount
Interface RJ45 Ethernet, Female
Color Black/Gray
Power Source No Power Required
Features Waterproof, Dustproof, Weatherproof, Easy Installation, Panel Mount
Components Panel Mount Housing, RJ45 Socket, Sealing Gasket, Lock Nut
Current Rating 1.5A Max
Operating Temperature -40C to +85C
Output RJ45 Female Socket
Rated Voltage 125V AC
Size Cat5e Standard Size
Function Ethernet Networking Connector
Capacity One Port
Frequency 50/60Hz
Usage Outdoor and Industrial Networking
Application Ethernet Connectivity in Harsh Environment
Weight Approx. 32g
Input RJ45 Male Connector

Insulation Resistance 500M at 500V DC
Shell Material High-Quality Plastic, Metal Nut
Contact Material Gold-plated Contacts
Connector Gender Female Socket
Mounting Type Panel Mount with Nut
Cable Compatibility Cat5e, Cat5, UTP/STP Cables
Shielding Unshielded
Connector Standard RJ45 Cat5e (8P8C)
Flame Retardant Level UL94V-0
Maximum Data Rate 100 Mbps (Fast Ethernet)
Contact Resistance 100m
Sealing Silicone/Rubber Gasket Included

DH24 RJ45 Cat5e Female Socket IP67 Waterproof Ethernet Connector Panel Mount Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Working temperature:-2585C, 85% RH Max
Operating voltage:42V
Insulation Resistance:500Mohm
Withstanding Voltage:1000V
Insertion force:22.25N Max
Modular Interface:RJ45

Superior Connectivity in Harsh Environments

Designed for outdoor and industrial applications, this RJ45 Cat5e panel mount socket offers high-level resistance to water, dust, and harsh weather. Thanks to its IP67 rating, flame-retardant UL94V-0 shell, and included silicone/rubber gasket, you can trust its performance where standard connectors fail, ensuring reliable Ethernet connectivity in demanding conditions.

Easy Installation and Secure Panel Mounting

The DH24 socket supports tool-free installation with a convenient metal lock nut and fits panel thicknesses from 1.5 to 3mm. Each connector kit includes all required mounting components, making it simple to secure and maintain your Ethernet link in field settings, distribution panels, or control units.

FAQ's of DH24 RJ45 Cat5e Female Socket IP67 Waterproof Ethernet Connector Panel Mount:

Q: How do I install the DH24 RJ45 Cat5e Female Socket on a panel?

A: Install the DH24 RJ45 socket by inserting it through a pre-drilled hole on your panel, ensuring panel thickness is between 1.5 mm and 3 mm. Secure it with the supplied metal lock nut from the rear. Place the silicone or rubber gasket between the panel and socket for optimal sealing, then connect your RJ45 cable.

Q: What environments is this connector suitable for?

A: This Ethernet connector is engineered for outdoor and industrial environments subject to water, dust, and temperature extremes. Its IP67 waterproof rating and flame-retardant housing protect against harsh weather, making it ideal for factory floors, outdoor equipment, and remote networking installations.

Q: When should I choose an IP67-rated Ethernet connector like this one?

A: Select an IP67-rated connector like the DH24 when you require reliable Ethernet connections in settings where moisture, dust, or environmental contaminants are present. This includes outdoor setups, industrial automation, and exposed field installations.

Q: Where can the DH24 RJ45 panel mount socket be used?

A: This connector fits applications such as outdoor surveillance systems, industrial automation panels, marine networking, and anywhere secure, weatherproof Ethernet connectivity is essential. Common users include manufacturers, distributors, importers, exporters, and wholesalers in India and worldwide.

Q: What cables are compatible with this socket?

A: The DH24 supports standard Cat5e and Cat5 cables, including both UTP and STP types. Simply use a male RJ45 connector to interface with the female socket for seamless integration with existing networking infrastructure.

Q: How does the waterproof sealing process work?

A: A silicone or rubber gasket is included to provide a watertight seal between the connector and mounting panel. When installed correctly, this sealing process ensures the connector meets IP67 requirements, protecting internal contacts from moisture and dust.

Q: What are the main benefits of using the DH24 connector?

A: Key benefits include dependable network performance in challenging environments, easy and secure panel mounting, compatibility with standard Ethernet cables, and protection against ingress of water, dust, and chemicals. Its robust design lengthens the lifespan of your Ethernet connection in critical applications.
