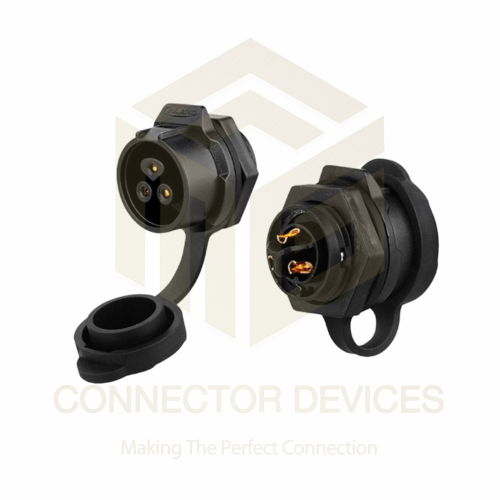

LP16 400V 10A 3Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal

276.0 INR/Piece

Get a Price/Quote

Product Details:

Features Waterproof, Dustproof, Secure Locking
Power Source External Power Supply Required
Power Supply AC
Components Plastic Shell, Solder Terminals
Input Solder Terminal Input
Usage Electrical Equipment Connections
Output Solder Terminal Output
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP16 400V 10A 3Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 276.0 INR/Piece

Wire Range Up to 1.5mm2 (16AWG)
Mating Cycles >500 Times
Ingress Protection IP67 - Dust Tight, Water Immersion
Contact Material Copper Alloy, Gold Plated
Shell Material High Strength Plastic
Locking Mechanism Screw Lock
Flame Retardant Rating UL94-V0
Mounting Type Panel Mount
Connector Gender Female
Contact Resistance 5m
Insulation Resistance >500M at 500V DC
Number of Pins 3 Pins

LP16 400V 10A 3Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Function Power Connector
Weight Approx. 20g
Current Rating 10A
Rated Voltage 400V AC
Features Waterproof, Dustproof, Secure Locking
Output Solder Terminal Output
Operating Temperature -20C to +80C
Application Industrial Power Distribution, Automation, Outdoor Equipment
Supply Voltage 400V
Components Plastic Shell, Solder Terminals
Power Supply AC
Power Source External Power Supply Required
Size 16mm Panel Mount
IP Rating IP67
Product Type 3 Pin Female Socket Connector
Interface Solder Terminal
Frequency 50/60Hz
Dimension (L*W*H) Approximately 52mm x 29mm x 24mm
Color Black
Capacity 10A Power Carrying Capacity
Usage Electrical Equipment Connections
Input Solder Terminal Input

Wire Range Up to 1.5mm2 (16AWG)
Mating Cycles >500 Times
Ingress Protection IP67 - Dust Tight, Water Immersion
Contact Material Copper Alloy, Gold Plated
Shell Material High Strength Plastic
Locking Mechanism Screw Lock
Flame Retardant Rating UL94-V0
Mounting Type Panel Mount
Connector Gender Female
Contact Resistance 5m
Insulation Resistance >500M at 500V DC
Number of Pins 3 Pins

LP16 400V 10A 3Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting mode:Easy locking type
Insertion and extraction force:1.8N Max
Wire specification:UL2464 24AWG*2C
Contact dimension:Phi 1.5x3
Temperature and humidity:-4080C, 40C, 85%RH
Mating cycle:> 1700times
Operating Voltage:400V

Engineered for Harsh Environments

This connector boasts an IP67 waterproof and dust-tight rating, making it suitable for installations exposed to outdoor elements or industrial dust. The high-strength plastic shell and UL94-V0 flame-retardant certification further enhance safety by resisting ignition in high-temperature scenarios. Whether it's rain, dust, or demanding conditions, this product maintains optimal performance without compromise.

Reliable Electrical Performance

Featuring copper alloy contacts with gold plating and low contact resistance (5m), the LP16 socket guarantees efficient power transfer and minimal loss. Insulation resistance exceeds 500M at 500V DC, ensuring dependable operation for sensitive and high-power equipment. With a current rating of 10A and voltage up to 400V AC, it meets the rigorous standards for industrial applications.

FAQ's of LP16 400V 10A 3Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How is the LP16 3Pin Female Socket installed?

A: The socket is designed for panel mounting using a 16mm cut-out. The solder terminals accommodate wires up to 1.5mm2 (16AWG), and the screw lock mechanism ensures a secure attachment to your equipment housing.

Q: What are the key benefits of the IP67 rating?

A: An IP67 rating means the connector is both dust-tight and protected against immersion in water up to 1 meter, making it suitable for outdoor and harsh industrial environments where moisture or dust could be problematic.

Q: Where can this connector typically be used?

A: It is ideal for industrial power distribution, automation systems, and outdoor equipment installations. Its robust construction and weather resistance make it a preferred choice in settings requiring reliable, secure power connections.

Q: What is the rated voltage and current capacity of this socket?

A: The LP16 socket supports up to 400V AC and can carry a maximum current of 10A, suitable for medium-to-high power applications within its specified operating temperature range.

Q: Who can benefit from using this connector?

A: Distributors, exporters, manufacturers, traders, and wholesalers in India dealing with industrial, automation, or outdoor electrical equipment can benefit from this reliable, durable, and easy-to-install power connector.

Q: What process is used for wiring the LP16 socket?

A: Wiring requires soldering conductors to the internal terminals, followed by mounting the connector onto a panel using its threaded bushing and securing it with the screw lock system for a tight, weatherproof fit.

Q: When is it necessary to use a waterproof and flame-retardant connector like this one?

A: Waterproof and flame-retardant connectors are essential when working in environments subject to moisture, dust, or potential exposure to heat and flame-such as outdoor installations, industrial machinery, or any settings with stringent safety standards.
