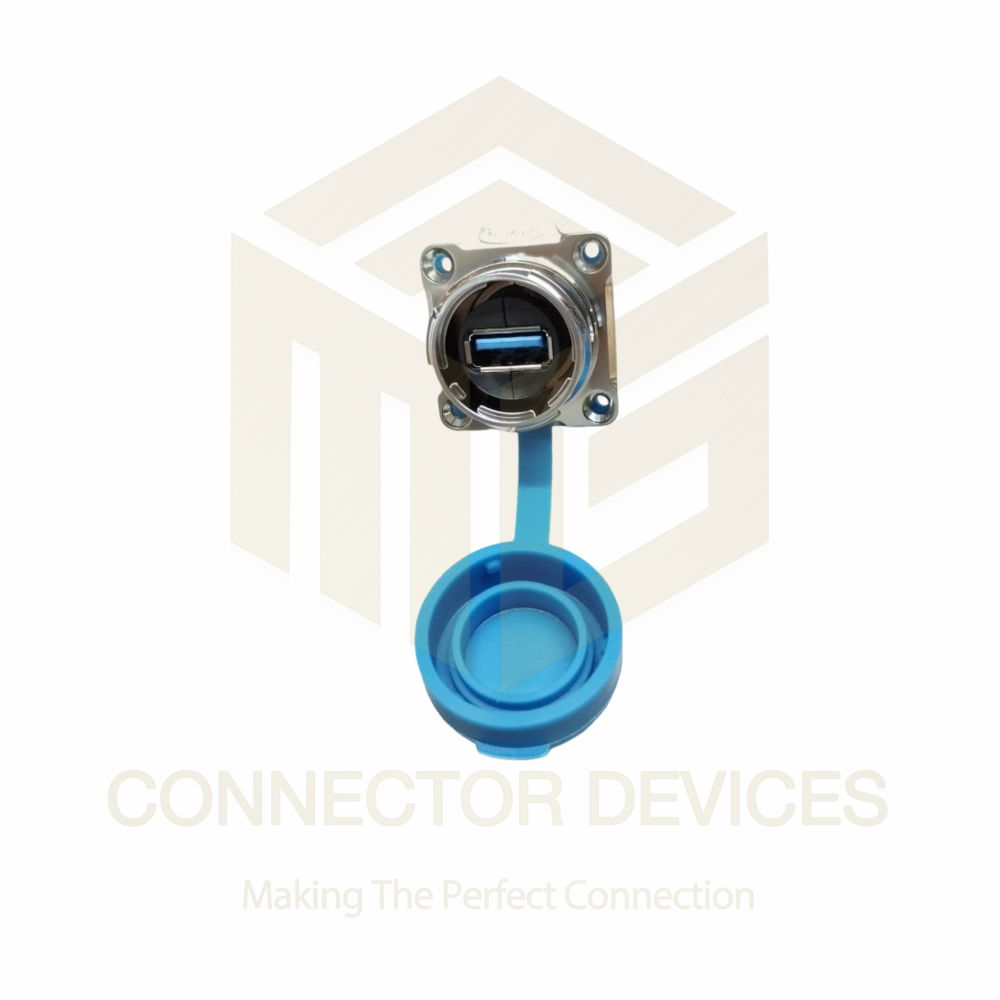

DH24 USB3 Female Socket IP67 Waterproof Data Connector Panel Mount (Bayonet Lock)

477 INR/Piece

Get a Price/Quote

Product Details:

Interface USB 3.0 Female
Usage Industrial Data Connect/Disconnect
Features Bayonet Lock, Waterproof, Dustproof, Panel Mount, Corrosion Resistant
Output USB 3.0 Female Socket
Charging Voltage 5V DC
Input USB 3.0 Female Socket
Power Supply USB powered
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH24 USB3 Female Socket IP67 Waterproof Data Connector Panel Mount (Bayonet Lock) Price And Quantity

Price 477 INR/Piece
Minimum Order Quantity 100 Piece

Material High-Quality Engineering Plastic and Copper Alloy Contacts
Shell Finish Black Matte
Contact Plating Gold Plated
Environmental Protection RoHS Compliant
Connector Type USB 3.0 Type A Female
Insulation Resistance >1000 M (at 500V DC)
Mating Cycle Durability >1500 cycles
Flame Retardancy UL94-V0 Rated
Cable Compatibility Compatible with Standard USB 3.0 Cables
Mounting Method Front Panel Mount with Bayonet Lock
Contact Resistance 30 m
Sealing Gasket Included for Panel IP67 Protection

DH24 USB3 Female Socket IP67 Waterproof Data Connector Panel Mount (Bayonet Lock) Product Specifications

Rated Voltage 30V DC
Power Source USB Power
Power Supply USB powered
Current Rating 1.8A max
Components Connector Body, Bayonet Cap, Gasket Ring, Panel Nut
IP Rating IP67
Supply Voltage 5V DC
Application Outdoor Networking Equipment, Industrial Control Automation, Marine, Data Acquisition
Operating Temperature -20C to +80C
Dimension (L*W*H) Approx. 56mm x 28mm x 28mm
Size DH24 Standard Circular Size
Capacity Supports up to 5 Gbps Data Rate
Product Type USB 3.0 Panel Mount Waterproof Connector
Thickness Panel Thickness: 1-5mm (recommended)
Interface USB 3.0 Female
Weight Approx. 28g
Color Black
Output USB 3.0 Female Socket
Usage Industrial Data Connect/Disconnect
Features Bayonet Lock, Waterproof, Dustproof, Panel Mount, Corrosion Resistant
Function USB 3.0 Data Transmission and Power Supply
Input USB 3.0 Female Socket
Charging Voltage 5V DC

Material High-Quality Engineering Plastic and Copper Alloy Contacts
Shell Finish Black Matte
Contact Plating Gold Plated
Environmental Protection RoHS Compliant
Connector Type USB 3.0 Type A Female
Insulation Resistance >1000 M (at 500V DC)
Mating Cycle Durability >1500 cycles
Flame Retardancy UL94-V0 Rated
Cable Compatibility Compatible with Standard USB 3.0 Cables
Mounting Method Front Panel Mount with Bayonet Lock
Contact Resistance 30 m
Sealing Gasket Included for Panel IP67 Protection

DH24 USB3 Female Socket IP67 Waterproof Data Connector Panel Mount (Bayonet Lock) Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Line diameter range:5.57mm
Connection mode:Quick bayonet connection
Rated current:1.5A
Protection Level:IP67
Mating cycle:> 500 times
Contact resistance:< 30mohm

Outstanding Durability and Performance

With a mating cycle durability exceeding 1500 cycles and a rugged bayonet lock, the DH24 USB3 connector is designed for repetitive industrial use. Its gold-plated contacts minimize resistance and improve conductivity, ensuring fast and stable connections even under high wear and vibration environments.

Versatile Outdoor and Industrial Applications

This connector is ideal for harsh environments, such as marine, industrial automation, and outdoor networking equipment. The included sealing gasket guarantees IP67 protection, making it dustproof and waterproof. Whether you're in data acquisition or control systems, the DH24 ensures uninterrupted operation.

Safe and Reliable Construction

Made from high-quality engineering plastic and copper alloy contacts, the DH24 USB3 connector offers exceptional corrosion resistance and flame retardancy (UL94-V0 rated). The black matte shell finish adds a professional touch while shielding against physical stress. It supports panel thicknesses from 1-5mm for secure installations.

FAQ's of DH24 USB3 Female Socket IP67 Waterproof Data Connector Panel Mount (Bayonet Lock):

Q: How is the DH24 USB3 IP67 connector installed in a panel?

A: The connector features a front panel mount design with a bayonet lock mechanism. To install, fit the sealing gasket and connector body through your panel's pre-cut hole (1-5mm thickness recommended), then secure it with the enclosed panel nut. The bayonet lock ensures a secure, vibration-resistant fit.

Q: What makes this connector suitable for outdoor or industrial environments?

A: The DH24 USB3 connector is engineered with IP67 waterproof and dustproof protection, robust flame retardancy (UL94-V0), and corrosion-resistant materials. Its durable design withstands harsh conditions, making it perfect for marine, industrial control, and outdoor networking applications.

Q: What kind of data transmission speeds does the connector support?

A: The DH24 USB3 connector supports USB 3.0 data speeds up to 5 Gbps, enabling rapid file transfers and efficient data acquisition for demanding industrial and networking tasks.

Q: Which cables are compatible with this USB 3.0 female socket?

A: This connector is fully compatible with standard USB 3.0 cables, allowing easy integration into a wide range of devices and systems requiring USB 3.0 Type A female connections.

Q: When should I use this waterproof USB connector?

A: Use the DH24 USB3 connector when you need reliable, high-speed data and power connections in environments exposed to moisture, dust, or mechanical stress, such as outdoor installations or heavy-duty industrial control setups.

Q: What benefits does the gold-plated contact and engineering plastic body provide?

A: Gold plating ensures low contact resistance and prolonged corrosion resistance, while the high-grade engineering plastic body offers robust mechanical protection and flame retardancy-ensuring long-lasting, safe operation.
