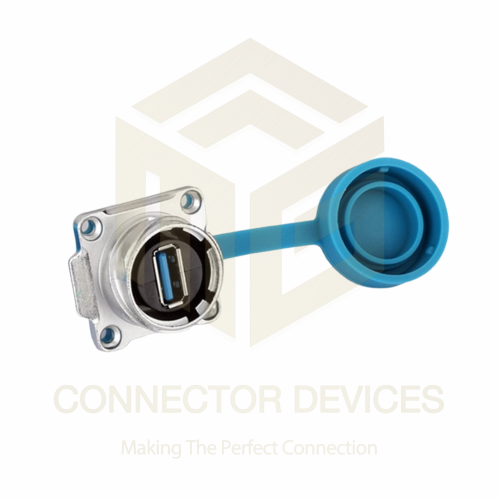

DH24 USB3 Female Socket IP67 Waterproof Data Connector

405 INR/Piece

Get a Price/Quote

Product Details:

Usage Data transmission, device charging, outdoor equipment interfacing
Components Connector body, protective cap, sealing O-ring, mounting nut
Input USB3.0 female socket
Charging Voltage 5V DC
IP Rating IP67
Interface USB 3.0 Type A Female
Features Waterproof, dustproof, panel mount, corrosion resistant, robust housing
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH24 USB3 Female Socket IP67 Waterproof Data Connector Price And Quantity

Price 405 INR/Piece
Minimum Order Quantity 100 Piece

Connector Gender Female socket
Mounting Style Panel mount with locknut
Environmental Resistance Corrosion and UV resistant
Storage Temperature -40C to +85C
Sealing Silicone O-ring waterproof sealing
Mating Cycles >1500 times
Insulation Resistance >=1000M at 500V DC
Protection Cap Attached, tethered, screw-on cap for port safety
Contact Material Gold plated copper alloy
Flammability Rating UL94 V-0
Contact Resistance 30m
Cable Compatibility USB 3.0 compatible cables, backward compatible with USB 2.0/1.1
Shell Material Zinc alloy with black nickel-plated

DH24 USB3 Female Socket IP67 Waterproof Data Connector Product Specifications

Interface USB 3.0 Type A Female
Dimension (L*W*H) 50mm x 27mm x 27mm (with cap in place)
Size DH24 shell size (diameter 27mm approx.)
Power Source USB Host Device
Product Type USB Connector
Features Waterproof, dustproof, panel mount, corrosion resistant, robust housing
Power Supply USB powered
Supply Voltage 5V DC
Color Black
Function USB 3.0 high-speed data transmission and power supply
Weight Approx. 48g
Application Industrial computers, outdoor communication equipment, automotive, marine, control boxes
Input USB3.0 female socket
Charging Voltage 5V DC
IP Rating IP67
Thickness Panel thickness support up to 3mm
Rated Voltage DC 5V
Output USB3.0 data and power signals
Usage Data transmission, device charging, outdoor equipment interfacing
Operating Temperature -30C to +85C
Current Rating 1.8A Max
Components Connector body, protective cap, sealing O-ring, mounting nut

Connector Gender Female socket
Mounting Style Panel mount with locknut
Environmental Resistance Corrosion and UV resistant
Storage Temperature -40C to +85C
Sealing Silicone O-ring waterproof sealing
Mating Cycles >1500 times
Insulation Resistance >=1000M at 500V DC
Protection Cap Attached, tethered, screw-on cap for port safety
Contact Material Gold plated copper alloy
Flammability Rating UL94 V-0
Contact Resistance 30m
Cable Compatibility USB 3.0 compatible cables, backward compatible with USB 2.0/1.1
Shell Material Zinc alloy with black nickel-plated

DH24 USB3 Female Socket IP67 Waterproof Data Connector Trade Information

Delivery Time 7 Days

Product Description

Grab the DH24 USB3 Female Socket IP67 Waterproof Data Connector to experience superlative USB performance in demanding environments. This top-drawer connector features reduced contact resistance (30m), rarefied insulation resistance (1000M), and boasts a robust zinc alloy shell with black nickel plating. Engineered with a gold-plated copper alloy contact and silicone O-ring sealing, it provides unmatched protection against water, dust, corrosion, and UV rays. The screw-on, tethered cap ensures port integrity while supporting high-speed USB 3.0 data transmission and power delivery for industrial, automotive, and outdoor equipment. Specially designed for reliability.

Primary Competitive Advantages & Key Uses

Experience rarefied durability and secure connectivity with the DH24 USB3 Female Socket IP67 Waterproof Data Connector. Its top-drawer waterproof, dustproof build and anti-corrosion housing make it ideal for industrial computers, marine devices, outdoor communication, control boxes, and automotive applications. Special panel mount with locknut supports up to 3mm thickness, guaranteed to withstand intermittent and harsh environments. Use type includes device charging, seamless data transfer, and outdoor equipment interfacing, ensuring you maintain connections reliably in any circumstance.

Sample Policy, Proposal & Delivery Details

Special sample policies are available to support your evaluation needs for the DH24 USB3 Female Socket IP67 Waterproof Data Connector. Proposal amounts for most supply requests are handled quickly, ensuring efficient procurement. Once the proposal is approved, products are shipped promptly with reduced delivery times across the main domestic market, including pan-India coverage. All components-including the robust connector body, sealing O-ring, and secure mounting nut-are supplied as assembled units to streamline your installation process.

FAQ's of DH24 USB3 Female Socket IP67 Waterproof Data Connector:

Q: How is the DH24 USB3 Female Socket IP67 connector protected against environmental factors?

A: This connector features an IP67-rated waterproof and dustproof design, corrosion and UV resistance, a black nickel-plated zinc alloy shell, silicone O-ring sealing, and a screw-on tethered cap to safeguard the port.

Q: What usage scenarios best suit this USB3 female socket connector?

A: It is specially designed for industrial computers, outdoor communication equipment, control boxes, marine environments, and automotive integration-anywhere high-speed data and power transmission are needed outdoors or in harsh settings.

Q: When should I consider using an IP67-rated USB connector like the DH24?

A: Choose the DH24 USB3 connector when your application demands robust environmental protection, frequent connections (over 1500 mating cycles), and secure, high-speed data transmission in settings prone to water, dust, or mechanical stress.

Q: Where can the DH24 USB3 connector be installed?

A: It supports panel mounting with a locknut and can be integrated into equipment panels up to 3mm thickness, making it suitable for a wide spectrum of installations in industrial, automotive, marine, and outdoor communication panels.

Q: What is the process for obtaining samples and delivery within India?

A: Sample policies facilitate proposal submissions; upon approval, your required quantities are shipped swiftly to your domestic location, reducing wait and ensuring a smooth supply process.

Q: What are the main benefits of the DH24 USB3 connector over standard USB sockets?

A: The main benefits include enhanced environmental resistance (IP67 waterproof/dustproof), superior mechanical durability, robust mounting options, and compatibility with both USB 3.0 and previous USB versions.
