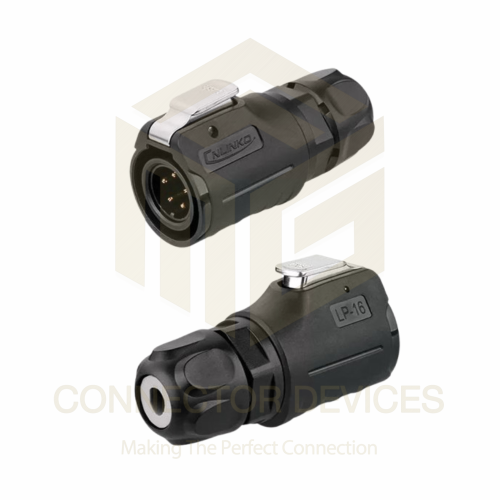

LP16 250V 5A 5Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal

342.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature -40C to +85C
Power Source Electrical Cable/Wire
Features Waterproof, Dustproof, Corrosion Resistant, Easy Assembly
Usage Outdoor/Industrial Power Supply
Thermal Conductivity Standard
IP Rating IP67
Output 5-Pin Male Plug Connector
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP16 250V 5A 5Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Price 342.0 INR/Piece
Minimum Order Quantity 100 Piece

Mounting Type Panel Mount
Dielectric Withstanding Voltage 1500V AC/minute
Insulation Resistance 1000M
Seal Ring Material Silicone Rubber
Resistance to Vibration High, suitable for industrial environments
Locking Mechanism Threaded Coupling Nut
Pins 5-Pin Configuration
Wire Gauge Support 20-16 AWG
Contact Material Copper/Gold-plated contacts
Shell Material High-quality Plastic
Mechanical Life >500 Mating Cycles
Connector Gender Male Plug
Contact Resistance 5m
Flammability Rating UL94-V0

LP16 250V 5A 5Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Rated Voltage 250V
Operating Temperature -40C to +85C
Size 16mm Panel Mount
Power Source Electrical Cable/Wire
Function Power Connection
Dimension (L*W*H) Approx. 53mm x 22mm x 22mm
Weight Approx. 24g
Features Waterproof, Dustproof, Corrosion Resistant, Easy Assembly
Usage Outdoor/Industrial Power Supply
Application LED Lighting, Automation Equipment, Outdoor Electronic Devices
Thermal Conductivity Standard
Current Rating 5A max
IP Rating IP67
Output 5-Pin Male Plug Connector
Power Supply AC/DC Universal
Interface Male Plug, Solder Terminal
Frequency 50/60Hz compatibility
Response Time Instantaneous Electrical Connection
Components Connector body, 5 solder terminals, gasket, locking system
Supply Voltage 250V AC/DC Max
Color Black
Capacity Supports up to 5A current
Thickness Standard Shell
Product Type Waterproof Power Connector
Input Solder Pin Connect

Mounting Type Panel Mount
Dielectric Withstanding Voltage 1500V AC/minute
Insulation Resistance 1000M
Seal Ring Material Silicone Rubber
Resistance to Vibration High, suitable for industrial environments
Locking Mechanism Threaded Coupling Nut
Pins 5-Pin Configuration
Wire Gauge Support 20-16 AWG
Contact Material Copper/Gold-plated contacts
Shell Material High-quality Plastic
Mechanical Life >500 Mating Cycles
Connector Gender Male Plug
Contact Resistance 5m
Flammability Rating UL94-V0

LP16 250V 5A 5Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting mode:Easy locking type
Insertion and extraction force:1.5N Max
Wire specification:UL2464 24AWG*2C
Contact dimension:Phi 1.0x5
Temperature and humidity:-4080C, 40C, 85%RH
Mating cycle:> 1700 times
Operating Voltage:250V

High-Quality, Secure Performance

Designed with a threaded coupling nut and precision-engineered components, the LP16 connector provides strong mechanical stability, supporting over 500 mating cycles. Its copper/gold-plated contacts ensure low contact resistance and excellent conductivity, making it a dependable choice for critical power connections in demanding environments.

Exceptional Waterproof and Safety Features

Achieving IP67 waterproof and dustproof ratings, this connector incorporates a silicone rubber seal ring and UL94-V0 flammability protection. It withstands both industrial rigor and unreliable outdoor conditions, prolonging device life and reducing maintenance needs for end users.

Versatility Across Applications

With its panel mount design, support for 20-16 AWG wires, and compatibility with AC/DC supply, the LP16 connector adapts seamlessly to LED lighting installations, automation control systems, and other outdoor electronic devices-ensuring efficient power delivery wherever needed.

FAQ's of LP16 250V 5A 5Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How do I install the LP16 5-Pin Male Plug onto my panel or device?

A: To install, cut a 16mm-diameter hole in your panel, insert the connector, and secure it using the threaded coupling nut. Wires (20-16 AWG) are soldered to the terminals before mounting, ensuring a firm and reliable connection.

Q: What is the benefit of the IP67 waterproof rating for this power connector?

A: The IP67 rating ensures the connector remains protected against dust ingress and complete immersion in water up to 1 meter for 30 minutes, making it highly suitable for outdoor or harsh industrial environments.

Q: Where can the LP16 5-Pin Power Connector be used effectively?

A: This connector is ideal for LED lighting systems, automation equipment, and outdoor electronics-especially in locations exposed to moisture, dust, or vibration, such as industrial plants or exterior device installations.

Q: What processes are involved in assembling or terminating wires to the connector?

A: Simply strip the insulation from your wires, solder them to the 5-pin terminals inside the connector, and fasten the connector's shell with the supplied locking nut for a secure, water-resistant seal.

Q: How is the connector's durability ensured over time?

A: With features like a UL94-V0 flammability-rated plastic shell, gold-plated contacts, silicone seal, and a mechanical life exceeding 500 mating cycles, the LP16 connector maintains secure performance under repeated use and harsh conditions.

Q: What are the advantages of gold-plated copper contacts in this connector?

A: Gold-plated copper contacts provide exceptional conductivity, minimize contact resistance (down to 5m), and offer superior corrosion resistance-supporting consistent power transfer and long-term reliability.
