LP20 500V 12A 5Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

Name: LP20 500V 12A 5Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 494.0 INR
Availability: InStock

494.0 INR/Piece

Get a Price/Quote

Product Details:

Power Supply AC/DC
Components Plastic+Metal Shell, Solder Terminals
Interface 5 Pin Solder Type
Operating Temperature -20C to +80C
Power Source Wired connection
Features Dustproof, waterproof, vibration-resistant, easy installation
IP Rating IP67
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP20 500V 12A 5Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 494.0 INR/Piece

Contact Resistance 5m
Shell Material Thermoplastic with metal lock
Cable Diameter Range 6mm - 12mm
Mechanical Life >500 mating cycles
Sealing Method O-ring gasket and threaded lock
Coupling Method Threaded coupling
Insulation Resistance >2000 M at 500V DC
Flame Retardant Grade UL94 V-0
Mounting Style Cable Mount
Contact Material Copper alloy with gold plating

LP20 500V 12A 5Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Operating Temperature -20C to +80C
Power Source Wired connection
Supply Voltage 500V Max
Current Rating 12A
Input Solder Terminal
IP Rating IP67
Features Dustproof, waterproof, vibration-resistant, easy installation
Function Electrical Power Connection
Output 5 Pin Male Plug
Usage Outdoor and industrial power connections
Size LP20 Series Standard
Components Plastic+Metal Shell, Solder Terminals
Rated Voltage 500V
Product Type Waterproof Power Connector
Power Supply AC/DC
Application Automation, LED, Outdoor equipment, Industrial machinery
Interface 5 Pin Solder Type
Dimension (L*W*H) Approx. 74mm x 32mm OD
Weight Approx. 45g
Color Black
Frequency 50/60Hz
Capacity 12A per pin

Contact Resistance 5m
Shell Material Thermoplastic with metal lock
Cable Diameter Range 6mm - 12mm
Mechanical Life >500 mating cycles
Sealing Method O-ring gasket and threaded lock
Coupling Method Threaded coupling
Insulation Resistance >2000 M at 500V DC
Flame Retardant Grade UL94 V-0
Mounting Style Cable Mount
Contact Material Copper alloy with gold plating

LP20 500V 12A 5Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Latching Lock connect
Cable Specification:1.0mm2 1.5mm2 /1816AWG
Diameter Range:7mm 9mm
Operating Voltage(AC.V.rms):500V
Durability:>500 mating & unmating cycles
Temperature Rating:-40C80C

Superior Waterproof and Dustproof Performance

With an IP67 rating and advanced sealing via an O-ring gasket and threaded lock, this connector provides reliable protection against dust, water, and moisture ingress in harsh environments. Its robust thermoplastic and metal construction withstands challenging outdoor or industrial conditions, ensuring consistent and safe electrical connections.

High Electrical and Mechanical Reliability

Engineered for a long service life, the LP20 connector endures over 500 mating cycles and handles up to 12A per pin at a maximum voltage of 500V. The gold-plated copper alloy contacts offer low resistance, while its insulation delivers over 2000 M at 500V DC, ensuring dependable, stable performance in power distribution and control systems.

FAQ's of LP20 500V 12A 5Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How do I install the LP20 500V 12A 5Pin Male Plug?

A: Begin by stripping your cable to fit the 6mm-12mm diameter range, then solder the wires to each pin terminal. Once wired, secure the shell using the threaded coupling and O-ring gasket for a tight, waterproof connection. Follow included instructions for best results.

Q: What environments are suitable for using this connector?

A: This connector is designed for both outdoor and industrial environments, offering IP67 dustproof and waterproof performance. It is ideal for applications such as automation, LED systems, outdoor equipment, and industrial machinery operating in demanding conditions.

Q: When should I choose this power connector over others?

A: Choose the LP20 5Pin Male Plug when you need high electrical capacity, flame retardancy (UL94 V-0), and resistance to water, dust, and vibration. Its robust construction and reliable gold-plated contacts make it superior for mission-critical installations.

Q: Where can this connector be applied?

A: It can be used in automation controls, LED lighting arrays, outdoor installations, industrial machinery, and any other setting requiring secure, weather-resistant, and high-current electrical connections.

Q: What are the main benefits of this power connector?

A: Key advantages include its easy installation, high current and voltage rating, IP67 waterproof and dustproof protection, flame-retardant materials, and long mechanical life of over 500 mating cycles-ensuring durability and peace of mind.

Q: How does the threaded coupling and sealing process enhance durability?

A: The threaded coupling combined with an O-ring gasket provides a watertight, dustproof seal, preventing ingress of contaminants and ensuring the connector withstands rough handling or environmental exposure typical in industrial and outdoor use.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Waterproof Power Connector' category

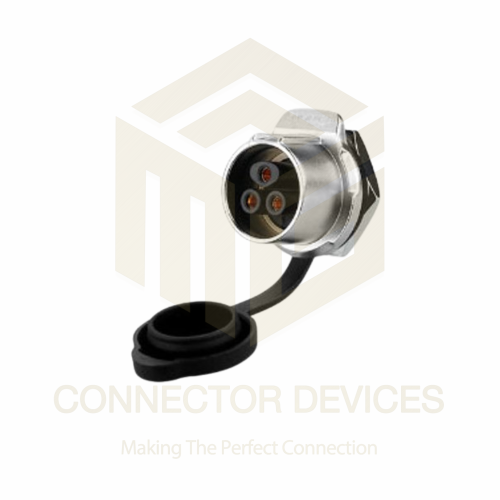

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Female Socket Panel Connector Plastic Shell Solder Terminal Price : 198.0 INR/Piece Minimum Order Quantity : 100 Dimension (L*W*H) : approx. 45mm x 30mm x 27mm Color : Black Size : 24mm Diameter Mount Power Source : Wired Electrical Power IP Rating : IP67 Features : Waterproof design, secure locking mechanism, flameretardant plastic shell, dustproof, vibration resistant Interface : Solder terminal Weight : 30g (approx) Capacity : 20A Max current Power Supply : AC Product Type : IP67 PowerCON Panel Connector Components : Connector body, solder terminals, mounting gasket Rated Voltage : 500V AC Application : Stage equipment, LED displays, Industrial power supply, Outdoor applications Output : Panel Mount Connection Function : Power connector for secure and waterproof AC power transfer Usage : Electrical power distribution, industrial equipment Operating Temperature : 40C to +80C Thickness : Panel thickness supported up to 5mm Supply Voltage : 500V AC Current Rating : 20A Input : 3Pin Female Socket Frequency : 50/60Hz
