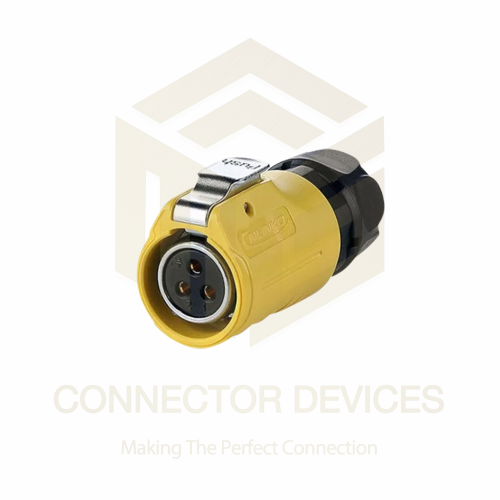

LP20 500V 20A 3Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

Name: LP20 500V 20A 3Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 545.0 INR
Availability: InStock

545.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP67
Power Supply AC/DC Power
Power Source Electric Power Supply
Usage Power connector for secure electrical transmission
Operating Temperature -40C to +80C
Output 3-pin female connection
Input Solder terminal
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP20 500V 20A 3Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 545.0 INR/Piece

Insulation Resistance 2000M
Mechanical Life >500 mating cycles
Mount Type Cable mount (inline connection)
Sealing Method O-ring and threaded coupling
Contacts 3-Pin (Brass + Tin-plated)
Withstand Voltage 1500V AC/min
Maximum Cable Diameter 6mm to 12mm
Connection Type Solder Terminal
Environmental Protection Dustproof, Waterproof (IP67)
Material Polyamide (plastic) + Zinc Alloy (metal shell)
Connector Type Female Plug
Contact Resistance 5m
Flammability Rating UL94 V-0

LP20 500V 20A 3Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Dimension (L*W*H) Approx. 72mm x 31mm x 31mm (plug body excl. cable)
Product Type Waterproof Power Connector
Operating Temperature -40C to +80C
Output 3-pin female connection
Interface 3-Pin Female, Solder Terminal
Rated Voltage 500V
Size As per manufacturer standards, typically 20mm OD shell
Usage Power connector for secure electrical transmission
Components Plastic+Metal Shell, Solder Terminals, Waterproof Seals
Supply Voltage 500V AC/DC
Input Solder terminal
Color Black + Silver
Features IP67 Waterproof, Robust Construction, Plastic + Metal Shell, Vibration Resistant
Frequency 50/60 Hz supported
Application Industrial, Outdoor, Power Distribution, Machinery
Weight Approx. 56g
Power Source Electric Power Supply
Current Rating 20A
Capacity 20A
Power Supply AC/DC Power
IP Rating IP67
Function Waterproof power connection for industrial and outdoor applications

Insulation Resistance 2000M
Mechanical Life >500 mating cycles
Mount Type Cable mount (inline connection)
Sealing Method O-ring and threaded coupling
Contacts 3-Pin (Brass + Tin-plated)
Withstand Voltage 1500V AC/min
Maximum Cable Diameter 6mm to 12mm
Connection Type Solder Terminal
Environmental Protection Dustproof, Waterproof (IP67)
Material Polyamide (plastic) + Zinc Alloy (metal shell)
Connector Type Female Plug
Contact Resistance 5m
Flammability Rating UL94 V-0

LP20 500V 20A 3Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Latching Lock connect
Cable Specification:2.5mm2 4mm2 /1412AWG
Diameter Range:8mm 12mm
Operating Voltage:500V
Durability:>1500 mating & unmating cycles
Temperature Rating:-40C80C

Robust Waterproof Construction

Engineered to IP67 standards, the LP20 connector excels in harsh conditions with its dustproof and waterproof sealing. The combination of polyamide plastic and zinc alloy ensures resilience against impact and vibration, making it perfect for outdoor and industrial power transmission.

High Electrical Performance

Supporting up to 500V AC/DC and 20A, the LP20 connector uses tin-plated brass contacts for reliable, low-resistance connections. Its insulation and withstand voltage meet the most demanding safety criteria, ensuring dependable performance in power distribution and machinery applications.

Easy Inline Cable Installation

Designed for cable mount (inline) use, the LP20 plug accommodates cable diameters from 6mm to 12mm. Installation is straightforward with solder terminals, while the O-ring and threaded coupling ensure a secure and watertight seal for extended use.

FAQ's of LP20 500V 20A 3Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How do I install the LP20 3-pin female plug?

A: To install the LP20 plug, strip the cable to fit the 6-12mm range, solder your wires to the appropriate terminals, and secure the assembly with the provided O-ring and threaded coupling for an IP67 waterproof seal.

Q: What environments are suitable for using the LP20 connector?

A: The LP20 is designed for both indoor and outdoor settings, including industrial sites, power distribution panels, and machinery, thanks to its IP67 waterproof and dustproof rating.

Q: When should I choose this connector for my project?

A: Select the LP20 connector when you need a reliable, waterproof, and robust power connection capable of handling up to 500V and 20A, especially in environments exposed to dust, water, or vibrations.

Q: Where is the LP20 typically used?

A: Common applications include industrial machinery, outdoor equipment, and electrical power distribution systems requiring secure, weather-resistant connections.

Q: What are the main benefits of the plastic and metal shell design?

A: The hybrid shell provides strong mechanical protection, excellent thermal stability, and enhanced vibration resistance, ensuring durability in challenging operating conditions.

Q: What is the process for soldering and assembling the terminals?

A: After preparing your cable ends, solder each wire to its corresponding terminal. Ensure clean, strong joints, then assemble the plug body and fasten with the O-ring and threaded coupling for maximum protection.
