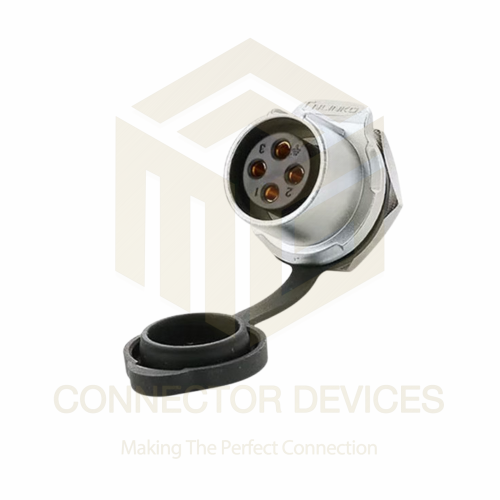

LP20 500V 20A 4Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal

Name: LP20 500V 20A 4Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 508.0 INR
Availability: InStock

508.0 INR/Piece

Get a Price/Quote

Product Details:

Output Solder terminal
Power Supply Cable-to-cable or cable-to-panel connection
Usage Outdoor or harsh environmental applications
IP Rating IP67
Operating Temperature -25C to +85C
Components Metal shell, 4 solder terminals, sealing O-ring
Interface 4 pin female socket, solder type
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP20 500V 20A 4Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Price 508.0 INR/Piece
Minimum Order Quantity 100 Piece

Mounting Type Panel mount
Connector Gender Female
Panel Thickness Supported 1-6mm
Contact Resistance 5m
Mating Cycle >500 times
Insulation Resistance >500M @ 500V DC
Shell Material Zinc alloy with nickel plating
Sealing Structure Rubber O-ring gasket
Vibration Resistance Excellent (suitable for industrial environments)
Contact Material Copper alloy with gold plating
Flame Retardant UL94-V0 rated
Lock Mechanism Threaded coupling
Environmental Protection UV resistant, weatherproof
Storage Temperature -40C to +105C
Wire Gauge Supported AWG 14-12
Connection Type Solder terminal

LP20 500V 20A 4Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Dimension (L*W*H) Panel cutout diameter: 20mm (L*W*H: Not specifically stated)
Power Source External Power Supply
Features Waterproof, dustproof, corrosion-resistant, secure lock
Size LP20 shell size, 4 pin
Input Solder terminal
Current Rating 20A
Supply Voltage 500V
Components Metal shell, 4 solder terminals, sealing O-ring
Application Industrial machinery, automation equipment, LED lighting, power transmission
Color Metallic Silver/Black
Rated Voltage 500V AC/DC
Operating Temperature -25C to +85C
Frequency 50/60Hz
Power Supply Cable-to-cable or cable-to-panel connection
Weight Approx. 60g
Output Solder terminal
Function Power connection for industrial equipment
IP Rating IP67
Interface 4 pin female socket, solder type
Capacity 20A per pin
Product Type Female Socket Connector
Usage Outdoor or harsh environmental applications

Mounting Type Panel mount
Connector Gender Female
Panel Thickness Supported 1-6mm
Contact Resistance 5m
Mating Cycle >500 times
Insulation Resistance >500M @ 500V DC
Shell Material Zinc alloy with nickel plating
Sealing Structure Rubber O-ring gasket
Vibration Resistance Excellent (suitable for industrial environments)
Contact Material Copper alloy with gold plating
Flame Retardant UL94-V0 rated
Lock Mechanism Threaded coupling
Environmental Protection UV resistant, weatherproof
Storage Temperature -40C to +105C
Wire Gauge Supported AWG 14-12
Connection Type Solder terminal

LP20 500V 20A 4Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Quickly bayonet connect
Cable Specification:2.5mm2 4mm2 /1412AWG
Diameter Range:8mm 12mm
Operating Voltage(AC.V.rms):500V
Withstand Voltage(AC.V)1min:2500
Temperature Rating:-40C80C

Robust, Waterproof Design for Industrial Power Connections

Engineered with a zinc alloy shell and nickel plating, the LP20 4Pin Female Socket offers outstanding durability and corrosion resistance. Its IP67 waterproof rating and UV protection make it perfect for outdoor use and harsh environments. Threaded coupling and a rubber O-ring gasket provide secure, weatherproof sealing, ensuring equipment safety and longevity.

High Capacity and Easy Mounting

With a current rating of 20A per pin and support for panel thicknesses from 1 to 6mm, the LP20 socket delivers high-capacity power transmission. Solder-type terminals accommodate AWG 14-12 wiring, and the straightforward panel mount design allows for rapid integration into industrial systems and control panels.

Ideal for Demanding Applications

This connector excels in vibration-rich, high-demand environments, including industrial automation, machinery, and outdoor lighting. Its UL94-V0 flame-retardant structure and -25C to +85C operating temperature range ensure safe, long-lasting performance for power distribution in a variety of challenging settings.

FAQ's of LP20 500V 20A 4Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal:

Q: How do I install the LP20 4Pin Female Socket in a panel?

A: To install, prepare a 20mm diameter cutout in your panel (1-6mm thick). Secure the socket using the threaded coupling, ensuring the rubber O-ring gasket is in place for a waterproof seal. Then, solder your AWG 14-12 wires to the terminals and connect the mating male connector.

Q: What environmental conditions can this connector withstand?

A: The connector operates reliably from -25C to +85C, is IP67 rated for waterproofing, UV-resistant, and withstands vibration, making it suitable for outdoor, industrial, or harsh environments.

Q: When should I use this type of power connector?

A: Use the LP20 4Pin socket for industrial and outdoor applications requiring robust, reliable, and secure high-current connections, such as in automation equipment, LED lighting, and power transmission systems.

Q: What are the main benefits of the metal shell and gold-plated contacts?

A: The zinc alloy shell with nickel plating offers excellent corrosion resistance and durability, while gold-plated copper contacts ensure high conductivity and reduce contact resistance, providing reliable connections in demanding conditions.

Q: How often can I connect and disconnect this socket?

A: The LP20 connector is rated for over 500 mating cycles, maintaining secure connections and performance throughout its lifespan.

Q: Where can I use this socket in my applications?

A: It is ideal for cable-to-panel or cable-to-cable connections in machinery, industrial automation, factory equipment, and outdoor electrical installations requiring waterproof, dustproof, and secure power interfaces.
