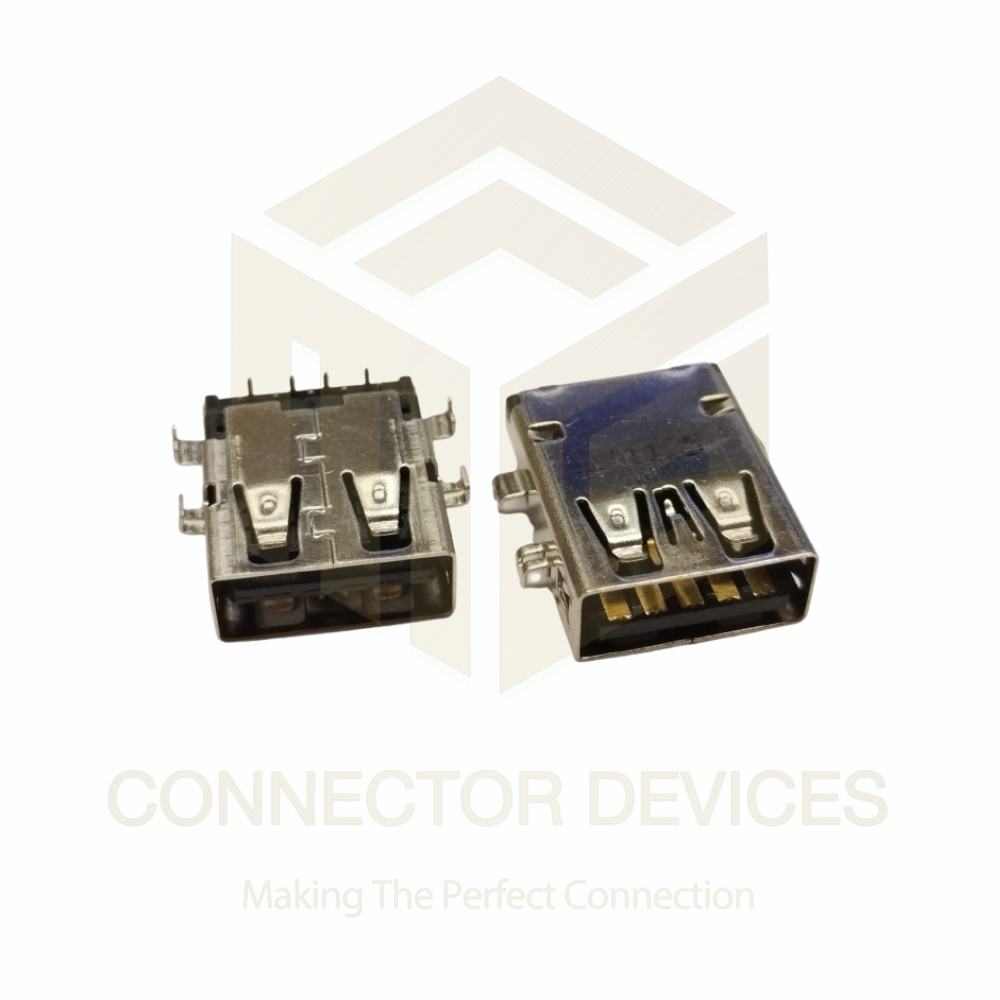

USB RA 9P 4LEG 3.0

Get a Price/Quote

Product Details:

Female End Type Receptacle
Temperature -20C to +85C
Connector USB 3.0 Right Angle, 9-pin
Pairs Twisted Pairs for Data
Capacity Up to 5 Gbps
Application PCB Mounting, USB 3.0 data transfer
Material High-Temperature Thermoplastic, Copper Alloy
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

USB RA 9P 4LEG 3.0 Price And Quantity

Minimum Order Quantity 100 Piece

USB RA 9P 4LEG 3.0 Product Specifications

Female End Type Receptacle
Temperature -20C to +85C
Jacket Material N/A (Connector only)
Insulation PVC Insulated
Pairs Twisted Pairs for Data
Capacity Up to 5 Gbps
Color Blue
Flame Resistance Level UL94V-0 Rated
Connector USB 3.0 Right Angle, 9-pin
Number of Conductor 9
Cable Type N/A (Connector only)
Wire Gauge 28 AWG Data, 24 AWG Power
Length N/A (Connector only)
Sheild Yes, Metal Shielding
Cable Length N/A (Connector only)
Application PCB Mounting, USB 3.0 data transfer
Connector Type USB 3.0 Type-A Right Angle
Material High-Temperature Thermoplastic, Copper Alloy
Voltage Rating 30V DC

Insertion Force 35N Max
Mounting Style Through Hole, 4 Leg
Current Rating 1.8A max
RoHS Compliance Yes, Lead-Free
Contact Plating Gold Over Nickel
Durability 1500 Cycles Min
Number of Positions 9
Insulator Color Blue
Orientation Right Angle (90)

Product Description

Experience the resplendent performance of the USB RA 9P 4LEG 3.0 Right Angle Connector, an enviable choice famed for its durability and reliable data transfer. With gold over nickel contact plating and a blue high-temperature thermoplastic insulator, this lead-free, RoHS compliant connector ensures outstanding connectivity at a bargain price. Its competitive pricing is ideal for manufacturers, wholesalers, and traders. Get it now and benefit from a robust shielded 9-pin USB 3.0 interface, supporting up to 5 Gbps and 1500+ insertion cycles-perfect for demanding industrial and electronic applications across India.

Key Features, Usage & Applications

The USB RA 9P 4LEG 3.0 is engineered for PCB mounting, excelling in high-speed data transfer for computer hardware, industrial systems, and communication devices. With its gold-plated contacts, blue insulation, and robust metal shielding, it delivers superior connectivity and flame resistance. Its through-hole, 4-leg design ensures stable installation. Suitable for environments from -20C to +85C, this connector is perfect for both commercial and industrial applications demanding longevity and reliability.

Markets, Shipping, and Sample Policy

USB RA 9P 4LEG 3.0 is widely shipped to main export markets including the USA, Europe, and Asia, while being highly rated in major Indian domestic markets. Distributors and wholesalers benefit from efficient drop-off and competitive rates. Samples are available per policy, ensuring customers can test before bulk orders. Fast processing and streamlined logistics make it easy for importers and exporters to source this exclusively engineered connector, maintaining export quality across all shipments.

FAQ's of USB RA 9P 4LEG 3.0:

Q: How can the USB RA 9P 4LEG 3.0 connector be applied in PCB mounting?

A: This connector is designed for straightforward through-hole installation onto PCBs, allowing secure and reliable integration for data transmission in various electronic systems.

Q: What makes the USB RA 9P 4LEG 3.0 an enviable choice for industrial use?

A: Its resplendent gold-over-nickel contacts, robust metal shielding, and high durability (up to 1500 cycles) deliver reliable performance under demanding industrial conditions, with strong flame resistance and wide temperature tolerance.

Q: When is it recommended to use this connector over standard USB connectors?

A: Choose this model when you need high-speed data transfer (up to 5 Gbps), higher current rating, right-angle orientation, and enhanced mechanical durability for intensive use in PCs and industrial controllers.

Q: Where can I source the USB RA 9P 4LEG 3.0 from within India?

A: It is available through multiple channels such as distributors, exporters, importers, manufacturers, and wholesalers across India, ensuring broad accessibility and competitive pricing.

Q: What are the benefits of the blue insulation and gold-over-nickel plating?

A: The blue PVC insulation offers high visibility and flame resistance (UL94V-0), while the gold-over-nickel plating provides optimal conductivity, corrosion resistance, and long-term reliability.

Q: How does the sample policy work for bulk orders?

A: Samples can be requested according to the distributor's sample policy, allowing you to evaluate the connector's quality and compatibility before finalizing a large-scale order.
