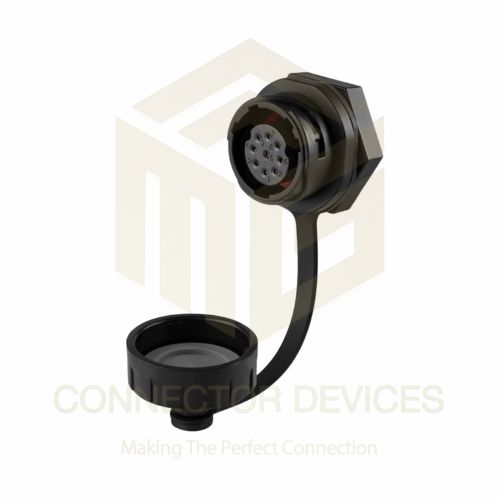

YM20 5A 9Pin Female Socket IP68 Waterproof Power Connector Panel Mount Plastic Shell Solder Terminal

Name: YM20 5A 9Pin Female Socket IP68 Waterproof Power Connector Panel Mount Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 383.0 INR
Availability: InStock

383.0 INR/Piece

Get a Price/Quote

Product Details:

Components Plastic body, 9 solder terminals, sealing ring
Output 9 Pin Connection
IP Rating IP68
Power Supply Electrical Solder Connection
Operating Temperature -25C to +85C
Interface Solder Terminals, Panel Mount
Power Source Electrical
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 5A 9Pin Female Socket IP68 Waterproof Power Connector Panel Mount Plastic Shell Solder Terminal Price And Quantity

Price 383.0 INR/Piece
Minimum Order Quantity 100 Piece

YM20 5A 9Pin Female Socket IP68 Waterproof Power Connector Panel Mount Plastic Shell Solder Terminal Product Specifications

Weight 38g (approx.)
Application Outdoor, LED, Automation, Industrial Equipment
Dimension (L*W*H) Approx. 68mm x 28mm x 28mm
Current Rating 5A
Supply Voltage Up to 250V
Frequency 50/60Hz
Size YM20 Series Shell Size
Interface Solder Terminals, Panel Mount
Function Power and signal transmission
Power Source Electrical
Color Black
Input Panel Mount Female Socket
Capacity 5A per pin
IP Rating IP68
Output 9 Pin Connection
Usage Industrial Power Connector
Operating Temperature -25C to +85C
Features Waterproof, Vibration-resistant, Dustproof, Easy solder installation
Power Supply Electrical Solder Connection
Components Plastic body, 9 solder terminals, sealing ring
Product Type Waterproof Power Connector
Rated Voltage 250V AC

Wire Size Compatibility 24-18 AWG
Max Cable Diameter 6mm - 12mm
Sealing Material Silicone Gasket
Contact Material Copper Alloy (Gold/Tin Plated)
Flame Resistance UL94 V-0 Grade
Mounting Type Panel Mount with Locknut
Material High-grade Plastic Shell
Contact Resistance 5m
Mechanical Life More than 500 Mating Cycles
Insulation Resistance > 2000 M at 500V DC
Number of Pins 9 Pins (Female Socket)
Mating Method Threaded Coupling
Connector Type Panel Mount Female Socket

YM20 5A 9Pin Female Socket IP68 Waterproof Power Connector Panel Mount Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Insertion and extraction force:4.0N Max
Screw torque:42-53(N.m)
Mating cycle:1700 Times
Temperature and humidity:-4080C; 40C, 85%RH
Contact dimension:Phi 2.7*2

Exceptional Waterproof and Dustproof Protection

With an IP68-rated silicone gasket and robust plastic shell, the YM20 connector shields against water, dust, and vibration, making it dependable for harsh outdoor and industrial settings. Its sturdy design ensures that sensitive power and signal pathways remain uncompromised, even in extreme conditions, enhancing equipment reliability and lifespan.

Easy Panel Mount Installation

The panel mount form factor, combined with a locknut and threaded coupling, streamlines installation onto panels or enclosures. Solder terminals provide a secure, long-lasting connection for both power and signal transmission. Compatibility with 24-18 AWG wire sizes allows flexibility across various wiring needs for electrical contractors and OEM designers.

Durable and Safe Operation

Built with a flame-retardant UL94 V-0 plastic shell and high-grade copper alloy contacts, the connector offers safety and enduring performance. Its mechanical lifespan exceeds 500 mating cycles, minimizing maintenance. Insulation resistance over 2000 M at 500V DC ensures consistent, safe operation in demanding applications.

FAQ's of YM20 5A 9Pin Female Socket IP68 Waterproof Power Connector Panel Mount Plastic Shell Solder Terminal:

Q: How do I install the YM20 5A 9Pin Female Socket on my equipment?

A: Simply mount the connector onto your control panel or enclosure using the locknut provided. Ensure proper alignment, then solder your 24-18 AWG wires to the numbered terminals. The threaded coupling mechanism secures the mating connector in place, guaranteeing a reliable connection.

Q: What environments is this connector suitable for?

A: The YM20 IP68 waterproof connector is ideal for outdoor, LED, automation, and industrial equipment applications. Its dustproof and vibration-resistant design makes it suitable for harsh environments where reliability is critical.

Q: What are the benefits of the IP68 rating for this connector?

A: An IP68 rating ensures full protection against dust ingress and can withstand immersion in water, making the connector highly reliable for outdoor or wet conditions. This extends the operational lifespan of connected equipment and reduces maintenance needs.

Q: What is the maximum cable size that can be used with this connector?

A: The connector is compatible with cables having diameters between 6mm and 12mm, providing versatility for a range of wiring requirements in industrial setups.

Q: How many mating cycles does the YM20 connector support?

A: Thanks to its robust construction, the YM20 is rated for more than 500 mating cycles, offering enduring performance with frequent connect/disconnect usage.

Q: What safety certifications does the connector meet?

A: The connector's plastic shell meets the flame resistance standard of UL94 V-0, ensuring high safety in the event of fire or electrical faults.

Q: Where can I use this connector in my project?

A: Use this connector for secure power and signal transmission in panel installations for outdoor, automation, or industrial equipment, particularly where waterproofing, vibration resistance, and durability are essential.
