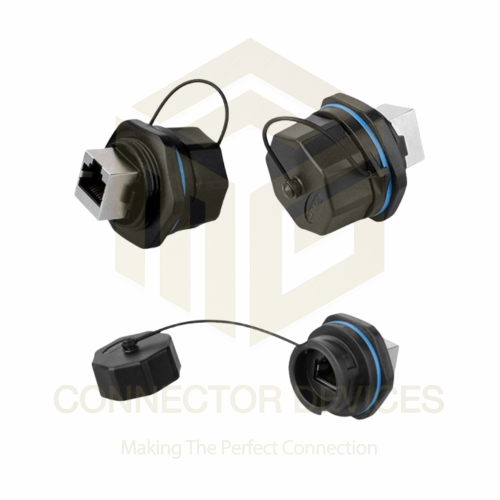

YT RJ45 Cat5e Female Socket Straight Dual Port IP65 Waterproof Ethernet Connector

Name: YT RJ45 Cat5e Female Socket Straight Dual Port IP65 Waterproof Ethernet Connector
Brand: CONNECTOR DEVICES
Price: 336.0 INR
Availability: InStock

336.0 INR/Piece

Get a Price/Quote

Product Details:

Output RJ45 Female Socket
Power Source Passive
Operating Temperature -20C to +80C
Interface RJ45 Cat5e Dual Female
Features Dustproof, Waterproof, Corrosion Resistant, Easy Panel Mount
Usage Outdoor/Industrial Ethernet Connections
Components Housing, RJ45 Sockets, Sealing Gasket, Panel Nut
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YT RJ45 Cat5e Female Socket Straight Dual Port IP65 Waterproof Ethernet Connector Price And Quantity

Minimum Order Quantity 100 Piece
Price 336.0 INR/Piece

YT RJ45 Cat5e Female Socket Straight Dual Port IP65 Waterproof Ethernet Connector Product Specifications

Components Housing, RJ45 Sockets, Sealing Gasket, Panel Nut
Usage Outdoor/Industrial Ethernet Connections
Dimension (L*W*H) 108mm x 28mm x 30mm (Approx)
Frequency 50/60 Hz
Output RJ45 Female Socket
Features Dustproof, Waterproof, Corrosion Resistant, Easy Panel Mount
Color Black
Power Source Passive
Size Straight Dual Port
Operating Temperature -20C to +80C
IP Rating IP65
Product Type Dual Port Ethernet Connector
Interface RJ45 Cat5e Dual Female
Capacity Supports up to 1 Gbps Ethernet
Application Network Communication & Signal Transmission
Thickness Standard Panel Thickness Support: 1mm - 6mm
Weight Approx. 85g
Rated Voltage 125V AC
Function RJ45 Ethernet Data Transmission
Current Rating 1.5A Max
Input RJ45 Female Socket

Flame Protection UL94-V0 Rated Housing
Mechanical Life >750 Mating Cycles
Material Engineering Plastic/ABS + Sealing Rubber
Environmental Resistance UV-Resistant, Dustproof Design
Mounting Cutout Size Approx. 24mm Diameter
Compatibility Backward Compatible with Cat5, Cat5e Standards
Connector Type Straight 2-Port RJ45 Cat5e Female
Waterproof Level Sealing Gasket for Waterproof Construction
Gasket Material Silicone Rubber
Data Rate Support 10/100/1000 Mbps (Gigabit Ethernet)
Number of Ports 2
Contact Material Gold-plated Brass Contacts
Installation Method Panel Mount with Lock Nut
Shielding Unshielded

YT RJ45 Cat5e Female Socket Straight Dual Port IP65 Waterproof Ethernet Connector Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Diameter range:5.57mm
Durability:> 500
Insulation resistance:> 500Mohm
Contact diameterxnumber:8
Operating voltage (AC):500V
Working temperature:-4080C

Engineered for Extreme Conditions

Built with rugged engineering plastic/ABS and silicone sealing, this connector is designed to withstand dusty, wet, and UV-exposed environments. The gold-plated brass contacts ensure stable, corrosion-resistant signal transmission, making the connector well-suited for outdoor and industrial settings where environmental challenges are common.

Dual Port, High-Speed Connectivity

Supporting two Cat5e RJ45 female sockets, this connector enables efficient integration of multiple network lines. It is compatible with Gigabit Ethernet (10/100/1000 Mbps) and works with Cat5 and Cat5e cables, providing reliable high-speed data transfer capabilities for network communication or signal transmission.

Simple, Secure Panel Mount Installation

The panel mount with lock nut design offers a straightforward installation process for panels with 1mm to 6mm thickness. Its 24mm cutout diameter simplifies retrofitting or replacement projects, while the silicone gasket delivers IP65-rated sealing against water and dust ingress.

FAQ's of YT RJ45 Cat5e Female Socket Straight Dual Port IP65 Waterproof Ethernet Connector:

Q: How do I install the YT RJ45 Cat5e Dual Port Connector on my equipment panel?

A: To install, create a 24mm diameter cutout on your panel (1mm-6mm thick). Insert the connector, align the sealing gasket for waterproof protection, and secure it using the provided lock nut from the inside. This ensures a tight, moisture-resistant fit.

Q: What environments is this Ethernet connector designed to withstand?

A: With its IP65-rated sealing, UV-resistant housing, and dustproof design, this connector is suited for outdoor and industrial environments such as manufacturing plants, outdoor kiosks, and network control panels exposed to harsh conditions.

Q: When should I choose this product over a standard, non-waterproof RJ45 socket?

A: Opt for this connector when your application requires protection from moisture, dust, and UV exposure-such as in outdoor or industrial settings where standard sockets may fail due to harsh environmental factors.

Q: Where can this connector be used for optimal performance?

A: It is ideal for installation in external enclosures, outdoor networking equipment, industrial automation panels, or anywhere reliable, high-speed Ethernet connectivity and environmental protection are critical.

Q: What are the benefits of the gold-plated brass contacts?

A: Gold-plated brass contacts enhance signal integrity, reduce corrosion risk, and ensure long-term reliable Ethernet connections, even in demanding environments.

Q: What is the mechanical lifespan of the socket and how does this impact usage?

A: The connector is rated for over 750 mating cycles, meaning it can be plugged and unplugged frequently without compromising performance, making it suitable for both permanent and temporary network setups.
