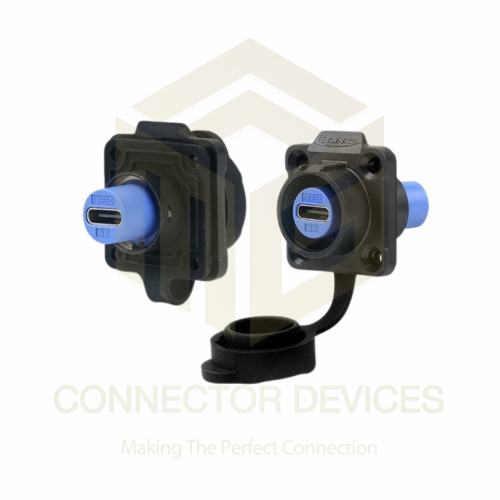

LP16 USB-C 3.1 Female Socket IP68 Waterproof Connector Flange Mount Plastic Shell

291.0 INR/Piece

Get a Price/Quote

Product Details:

Usage Outdoor and harsh environment data/power transfer
Power Source USB Bus-Powered
Interface USB Type-C Female
Components Connector body, sealing gasket, mounting nuts
IP Rating IP68
Input USB Type-C 3.1 Female
Power Supply USB Powered
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP16 USB-C 3.1 Female Socket IP68 Waterproof Connector Flange Mount Plastic Shell Price And Quantity

Minimum Order Quantity 100 Piece
Price 291.0 INR/Piece

Sealing Gasket Material Rubber/Silicone
Cable Entry Back entry, up to 8mm cable diameter
Mating Cycle > 1500 times
Mounting Type Flange mount, panel hole 21mm
Contact Material Gold-plated copper alloy
Contact Resistance 30m
Insulation Resistance >1000M at 500V DC
Environmental Protection Resistant to UV, salt spray, and oil
Flame Retardant Grade UL94 V-0
Shell Material High strength plastic

LP16 USB-C 3.1 Female Socket IP68 Waterproof Connector Flange Mount Plastic Shell Product Specifications

IP Rating IP68
Size Flange diameter 27mm, body diameter 21mm
Dimension (L*W*H) 41mm x 27mm x 27mm
Components Connector body, sealing gasket, mounting nuts
Color Black
Application Industrial, Networking, Marine, Outdoor Electronics
Interface USB Type-C Female
Weight Approx. 20g
Features Flange Mount, IP68 Waterproof, Corrosion-resistant, Dustproof, Plastic Shell, Solder cup termination
Power Source USB Bus-Powered
Usage Outdoor and harsh environment data/power transfer
Operating Temperature -20C to +80C
Charging Voltage 5V/9V/15V/20V supported (per USB PD spec)
Product Type Panel Mount USB Connector
Current Rating 5A Max
Output USB Type-C 3.1 Female Socket
Function Waterproof USB-C 3.1 data and power connection
Power Supply USB Powered
Rated Voltage 60V DC
Supply Voltage Up to 60V DC
Input USB Type-C 3.1 Female
Thickness Approx. 20 mm (flange area)

Sealing Gasket Material Rubber/Silicone
Cable Entry Back entry, up to 8mm cable diameter
Mating Cycle > 1500 times
Mounting Type Flange mount, panel hole 21mm
Contact Material Gold-plated copper alloy
Contact Resistance 30m
Insulation Resistance >1000M at 500V DC
Environmental Protection Resistant to UV, salt spray, and oil
Flame Retardant Grade UL94 V-0
Shell Material High strength plastic

LP16 USB-C 3.1 Female Socket IP68 Waterproof Connector Flange Mount Plastic Shell Trade Information

Delivery Time 7 Days

Product Description

Experience distinguished value with the LP16 USB-C 3.1 Female Socket IP68 Waterproof Connector-a monumental innovation for outdoor and industrial applications. Featuring a crowning design of high-strength plastic flange mount and gold-plated copper alloy contacts, this connector ensures superior conductivity and durability. Flame retardant to UL94 V-0, resistant to UV, salt spray, and oil, it's engineered for harsh environments. Limited stock-advance purchase secures your access to this pinnacle of waterproof, corrosion-resistant connectivity. Ideal for networking, marine, and industrial electronics, it stands as a distinguished solution, delivering robust USB data and power connections every time.

Distinguished Advantage and Diverse Applications

The LP16 USB-C 3.1 Female Socket IP68 Waterproof Connector stands out with its IP68 waterproof protection, advanced gold-plated copper alloy contacts, and secure flange mount for seamless panel integration. Installation simply requires aligning the flange, securing the mounting nuts, and ensuring the rubber/silicone gasket is properly seated. Widely used by manufacturers, distributors, and networking professionals, it's ideal for outdoor electronics, marine equipment, and industrial automation that demand both resilience and reliable power/data transfer.

Certification, Ordering, and Dispatch Details

Certified to meet rigorous flame-retardant (UL94 V-0) and environmental protection standards, the LP16 connector assures premium safety and performance. Samples are available for quality assessment prior to bulk purchase. By placing a purchase order, your products will be carefully prepared and handed over for dispatching on receipt of confirmation. Flexible payment terms are ensured to support distributors, exporters, manufacturers, and traders seeking reliable project timelines for Indian and international markets.

FAQ's of LP16 USB-C 3.1 Female Socket IP68 Waterproof Connector Flange Mount Plastic Shell:

Q: How do you install the LP16 USB-C 3.1 Female Socket IP68 Waterproof Connector?

A: To install, align the flange mount with your panel's 21mm hole, insert the connector, and secure it using the supplied sealing gasket and mounting nuts. Ensure the cable (up to 8mm diameter) enters from the back entry, then solder the wires to the solder cup termination.

Q: What applications are suitable for the LP16 USB-C 3.1 Connector?

A: This connector is ideal for use in outdoor electronics, industrial control panels, marine equipment, and networking devices where waterproof, dustproof, and corrosion-resistant connections are essential.

Q: When are samples and bulk orders for the LP16 Connector handed over and dispatched?

A: Upon receipt and confirmation of your purchase order, samples or bulk orders are promptly handed over to logistics partners for dispatching, ensuring swift delivery timelines.

Q: Where can I utilize the LP16 USB-C 3.1 Female Socket for optimal benefit?

A: Utilize this connector wherever you need reliable, waterproof USB-C power or data transfer-specifically in harsh environmental conditions such as marine, outdoor networking nodes, and industrial equipment installations.

Q: What are the benefits of advance purchase for the LP16 Waterproof Connector?

A: Advance purchase ensures product availability, especially considering limited stock. It guarantees timely project deployment and preferred access to a distinguished, high-performance connectivity solution.

Q: How does the LP16 USB-C 3.1 Connector ensure safety and longevity?

A: It's certified flame retardant (UL94 V-0), offers IP68 waterproofing, and uses corrosion-resistant materials. These features deliver monumental safety, minimize maintenance, and extend operating life in demanding settings.
