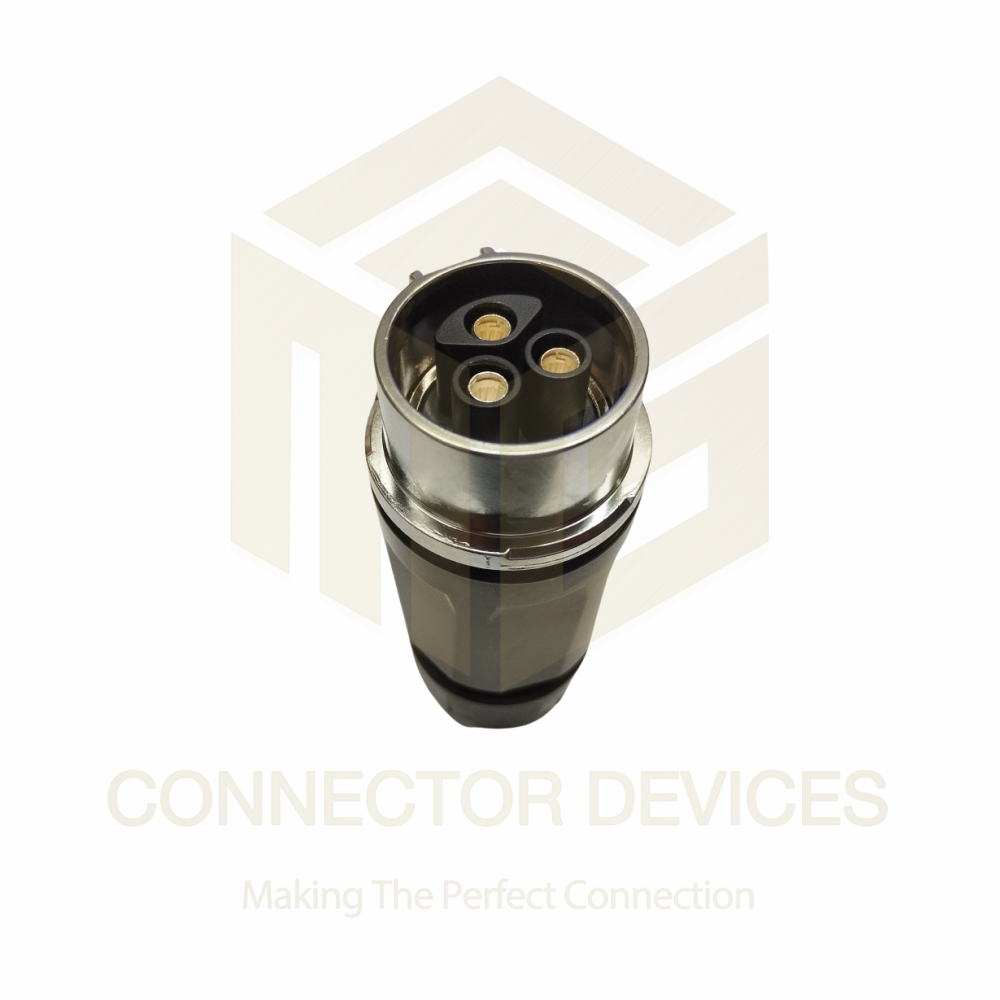

LP28 500V 35A 3Pin Female Inline IP67 Waterproof Power Connector

1139.0 INR/Piece

Get a Price/Quote

Product Details:

Output Three-pin inline connection
Components Connector body, sealing rings, terminals, cable clamp
Usage Outdoor or industrial electrical systems
Interface 3 Pin Female Inline
Features Waterproof, dustproof, robust construction, corrosion-resistant
Power Supply Electric
Power Source External power via cable
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP28 500V 35A 3Pin Female Inline IP67 Waterproof Power Connector Price And Quantity

Price 1139.0 INR/Piece
Minimum Order Quantity 100 Piece

Sealing Method Silicone O-ring gasket
Locking Mechanism Screw coupling
Number of Contacts 3 (female)
Shell Material High-strength PA66 (Nylon) thermoplastic
Contact Resistance 5m
Mounting Style Inline, cable-to-cable connection
Contact Material Copper alloy with nickel-plated surface
Mechanical Life > 1000 mating cycles
Flame Retardant Standard UL94 V-0
Insulation Resistance 2000M (at 500V DC)
Cable Diameter Range 8mm to 12mm
Packing Type Individual polybag/box packaging
Rated Impulse Voltage 4000V
Environmental Resistance UV, oil, salt, vibration

LP28 500V 35A 3Pin Female Inline IP67 Waterproof Power Connector Product Specifications

Components Connector body, sealing rings, terminals, cable clamp
Weight 340g
Output Three-pin inline connection
Size LP28 Series Shell
Usage Outdoor or industrial electrical systems
Features Waterproof, dustproof, robust construction, corrosion-resistant
Product Type Female Inline Power Connector
Interface 3 Pin Female Inline
Power Supply Electric
Power Source External power via cable
Color Black
Current Rating 35A
Dimension (L*W*H) Approx. 105mm x 36mm x 36mm
Supply Voltage 500V
IP Rating IP67
Function Power connection and distribution in demanding environments
Input Three-pin inline connection
Thickness Standard
Operating Temperature -40C to +80C
Application Power transmission for machinery, equipment, and industrial installations
Rated Voltage 500V AC/DC
Frequency 50-60Hz
Capacity 35A

Sealing Method Silicone O-ring gasket
Locking Mechanism Screw coupling
Number of Contacts 3 (female)
Shell Material High-strength PA66 (Nylon) thermoplastic
Contact Resistance 5m
Mounting Style Inline, cable-to-cable connection
Contact Material Copper alloy with nickel-plated surface
Mechanical Life > 1000 mating cycles
Flame Retardant Standard UL94 V-0
Insulation Resistance 2000M (at 500V DC)
Cable Diameter Range 8mm to 12mm
Packing Type Individual polybag/box packaging
Rated Impulse Voltage 4000V
Environmental Resistance UV, oil, salt, vibration

LP28 500V 35A 3Pin Female Inline IP67 Waterproof Power Connector Trade Information

Delivery Time 7 Days

Product Description

Rated Current:35A
Operating Voltage:500V
Wire Specification:2.5mm5mm/14-12AWG
Line Diameter Range:18mm20mm
Contact Resistance:< 5m Ohm
Withstand Voltage (AC.V) 1 Minute:2500 V
Insulation Resistance:500MOhm

Reliable Power Transmission for Industrial Environments

Built to support consistent power delivery, the LP28 connector excels in outdoor and industrial settings. Its robust construction, certified flame retardancy, and ability to withstand environmental challenges make it a preferred choice for critical applications. The connector's design ensures simple installation, secure locking, and long-term durability.

Designed for Safety and Long-Term Durability

With a rated impulse voltage of 4000V, insulation resistance of 2000M at 500V DC, and a mechanical life exceeding 1000 mating cycles, the LP28 connector meets rigorous safety and endurance standards. The flame-retardant UL94 V-0 shell and corrosion-resistant contacts guarantee reliable operation in hazardous and fluctuating environments.

FAQ's of LP28 500V 35A 3Pin Female Inline IP67 Waterproof Power Connector:

Q: How do you install the LP28 3Pin Female Inline Power Connector?

A: To install the LP28 connector, strip the cable ends to fit within the 8mm to 12mm diameter range, attach each wire to the designated terminal, secure the cable with the built-in clamp, and tighten the shell using the screw coupling mechanism, ensuring the silicone O-ring is properly seated for optimal waterproofing.

Q: What are the main advantages of choosing this connector for outdoor or industrial applications?

A: The LP28 connector stands out due to its IP67-rated waterproof and dustproof sealing, UV and corrosion resistance, robust PA66 housing, and compatibility with demanding environments. It reliably supports safe, stable power transmission for equipment exposed to harsh industrial or outdoor conditions.

Q: When should you use the LP28 3Pin Female Inline Connector in your projects?

A: This connector is suited for use when high-current (up to 35A), high-voltage (500V) power delivery is necessary-particularly for machinery, industrial equipment, or distribution systems where environmental exposure and durability are critical factors.

Q: Where can this connector be effectively deployed?

A: It is ideal for deployment in industrial installations, outdoor electrical systems, and areas exposed to moisture, dust, oil, salt, and vibration-such as factories, renewable energy setups, heavy machinery, and construction sites.

Q: What steps are involved in maintaining the LP28 connector for optimal performance?

A: Regularly inspect the connector for debris or corrosion, ensure all seals and O-rings are intact, check the screw coupling for tightness, and confirm that cable clamps are firmly secured to maintain water and dust resistance.

Q: How does the LP28 ensure safety during prolonged use?

A: Safety is ensured by its high-grade materials, flame-retardant PA66 housing, nickel-plated copper alloy contacts, and robust insulation, all designed to prevent accidental short circuits, moisture ingress, or terminal loosening, even under frequent connection cycles.

Q: What benefits does the screw coupling locking mechanism provide?

A: The screw coupling ensures a secure, vibration-resistant connection, preventing accidental disconnection and maintaining consistent electrical contact even in dynamic, high-vibration settings.
